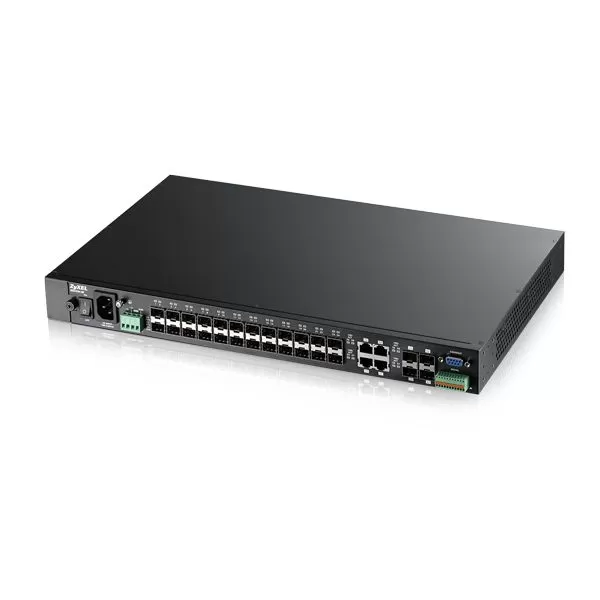

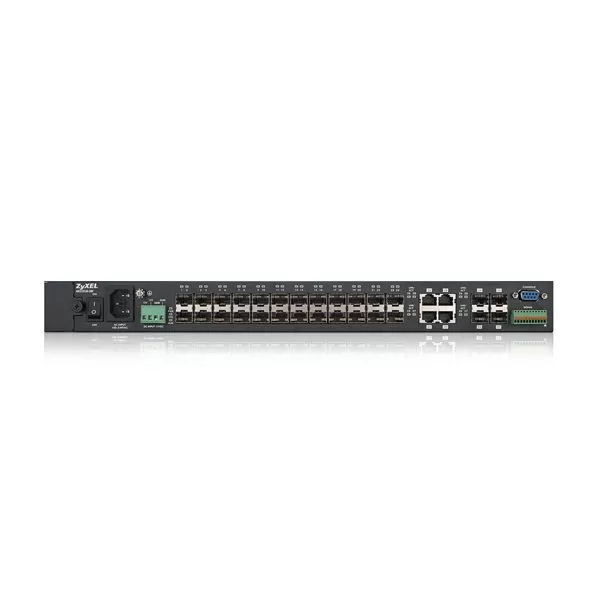

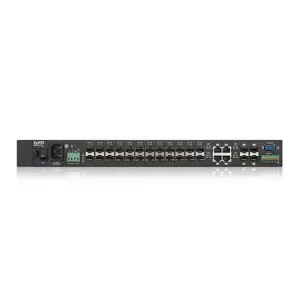

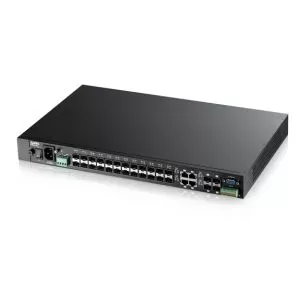

Switch ZyXEL MGS3520-28F 24-port SFP 1GbE L2 Managed + 4x Combo (RJ45/SFP)
Cod produs: MGS3520-28F-EU01V1F
ID produs: 195977
Produsul nu mai face parte din oferta
Garantie conformitate:
24 luni
Garantie PF:
60 luni
Garantie PJ:
24 luni
Cost transport prin Fan Courier:
Cere Info:
(031) 405.23.59
Produse asemanatoare
Standard Compliance
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-Tx Ethernet
- IEEE 802.ab 1000BASE-T Ethernet
- IEEE 802.3z 1000BASE-X
- IEEE 802.3x flow control
- IEEE 802.1d spanning tree protocol
- IEEE 802.1w rapid spanning tree protocol
- IEEE 802.1s multiple spanning tree protocol
- IEEE 802.1p class of service, priority protocols
- IEEE 802.1Q VLAN tagging
- IEEE 802.1X port authentication
- IEEE 802.3ad LACP aggregation
- IEEE 802.1ad VLAN stacking
- IEEE 802.3az Energy Efficient Ethernet (EEE)
User Security and Authentication
- IEEE 802.1X authentication
- IP source guard (static IP/MAC binding, DHCP snooping, ARP inspection)
- IP subnet VLAN & VLAN isolation
- Limiting MAC number per port
- Loop guard prevents a switch from being affected by another switch which is already in a looping status
- MAC filtering per port secures access to each port
- MAC freeze
- Port security, port isolation, port mirroring,intrusion lock
- RADIUS MAC authentication
- Static MAC forwarding per port: only specified MAC addresses can access the network (port security)
- Wire speed filtering per MAC/IP/TCP/UDP
- Wire speed mirroring per MAC/IP/TCP/UDP
- Wire speed rate limiting per MAC/IP/TCP/UDP
- GVRP, automatic VLAN member registration
- Guest VLAN
- CPU protection
- IP-MAC-Port binding
Network Administration Security
- SSH v1/v2
- SSL
- RADIUS accounting
- TACACS+ authentication, accounting
- NTP, daylight saving
Traffic Management and QoS
- Broadcast storm control
- IEEE 802.1p with 8 hardware priority queues per port for different types of traffic
- IEEE 802.1ad QinQ/selected QinQ
- IEEE 802.1Q tag-based and port-based VLAN
- Weighted Fair Queuing (WFQ)/WRR/SPQ scheduling algorithm
- Policy based rate limiting
- Policy based bandwidth control
- Port based traffic shaping/rate limiting
- Rule-based traffic mirroring
- IGMP snooping (v1, v2, v3)
- IGMP filtering
- Jumbo frame support (9K Bytes) for high performance data backup or recovery services
- Support GVRP, automatic VLAN member registration
- Multicast VLAN Registration (MVR)
- BPDU transparency
- Selective Q-in-Q
Network Management
- Intuitive Web-based management with all features configurable
- Text-based configuration profile for massive deployment
- Telnet CLI (Cisco like)
- SNMP v1, v2c, v3, trap group
- RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) or traffic management, monitoring, and analysis
- Firmware upgrade, configuration backup/restore via ftp
- Alarm led indicator for early warning of hardware troubles
- Send system trap to trap server
- DHCP relay, DHCP relay per VLAN, DHCP relay option 82, DHCP client
- Port mirroring: supports source/destination/port mirroring
- IEEE 802.3ah Ethernet operations,administration and management
- IEEE 802.1ag CFM
- CO-LPR (Dying gasp)
- sflow
Intelligent ACL (L2/L3/L4 Access List Control)
- Based on port
- Based on MAC + VLAN ID
- Based on IP address (source/destination)
- Based on protocol type
- Based on TCP/UDP port number MIB information
Link Aggregation
- IEEE 802.3ad LACP link aggregation compliant
- Support static manually port trunking
- Up to 6 aggregation groups, 8 ports/per group randomly selected
- VLAN trunking
Redundancy for Fault Backup
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of spanning tree independent of spanning-tree timer
- IEEE 802.1s multiple spanning tree provides link availability in multiple VLAN environments by allowing multiple spanning trees
- MRSTP—Multiple RSTP
MIB
- ZyXEL new private MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 remote management MIB
- RFC 3621 power Ethernet MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol
- RFC 4292 IP forwarding table MIB
- RFC 4293 Management Information Base (MIB) for IP
Safety Certification
- LVD: EN609501: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013
EMC
- CE:
- EN55022: 2010 + AC: 2011
- EN61000-3-2: 2006 + A1: 2009 + A2: 2009
- EN61000-3-3: 2013
- EN55024: 2010
- AS/NZS CISPR 22: 2009 + A1: 2010
- FCC Part 15, subpart B
- ICES-003 Issue 5
RoHS
- Level A
| Caracteristici Switch ZyXEL MGS3520-28F 24-port SFP 1GbE L2 Managed + 4x Combo (RJ45/SFP): | |
| Porturi cupru | 4 |
| Porturi fibra | 24 |
| Viteza | Gigabit (1000Mbps) |
| Power over Ethernet -PoE | Nu |
| Management | Da - Layer 2 |
| Rack mounting | Nu |
| Switching capacity | 56Gbps |
| Standarde | IEEE 802.3/802.3u/802.ab/802.3z/802.3x/802.1d/802.1w/802.1s/802.1p/802.1Q/802.1X/802.3ad/802.1ad/802.3az |
| MAC Addreses | 16000 |
| Buffer Memory | 12Mbit (1.5MB) |
| Switch modular | Nu |
| Dimensiuni (W x D x H mm) | 440 x 270 x 44 |
| Greutate Colet | 4.42 |
| Greutate (Kg) | 3.72 |
Produsul a fost adaugat pe site in data de 15.11.2016
| Switch ZyXEL MGS3520-28F 24-port SFP 1GbE L2 Managed + 4x Combo (RJ45/SFP) | |
| Porturi cupru | 4 |
| Porturi fibra | 24 |
| Viteza | Gigabit (1000Mbps) |
| Power over Ethernet -PoE | Nu |
| Management | Da - Layer 2 |
| Rack mounting | Nu |
| Switching capacity | 56Gbps |
| Standarde | IEEE 802.3/802.3u/802.ab/802.3z/802.3x/802.1d/802.1w/802.1s/802.1p/802.1Q/802.1X/802.3ad/802.1ad/802.3az |
| MAC Addreses | 16000 |
| Buffer Memory | 12Mbit (1.5MB) |
| Switch modular | Nu |
| Dimensiuni (W x D x H mm) | 440 x 270 x 44 |
| Greutate Colet | 4.42 |
| Greutate (Kg) | 3.72 |
