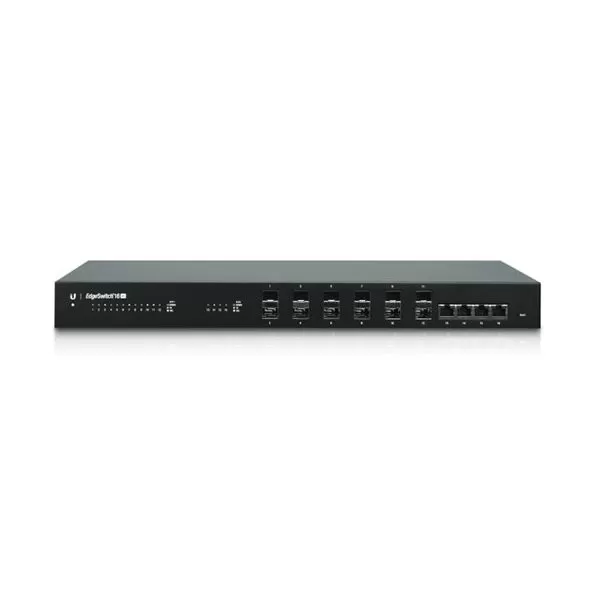

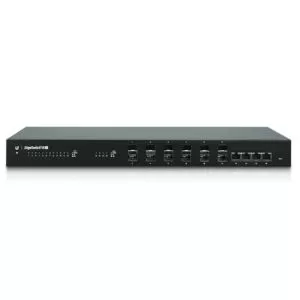

Switch Ubiquiti ES-16-XG 10GbE Fiber, 12x SFP+ 4x RJ45 10GBASE-T

Software Specifications
Software Information
Core
Switching
Features
• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D: Spanning Tree Compatibility
• IEEE 802.1S: Multiple Spanning Tree Compatibility
• IEEE 802.1W: Rapid Spanning Tree Compatibility
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.3an-2006: 10GBASE-T
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
• IEEE 802.3ac: VLAN Tagging
• IEEE 802.3ad: Link Aggregation
• IEEE 802.3x: Flow Control
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
• IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
• IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
• RFC 5171: Unidirectional Link Detection (UDLD) Protocol
Advanced
Layer 2
Features
• Broadcast Storm Recovery
• Broadcast/Multicast/Unknown Unicast Storm Recovery
• DHCP Snooping
• IGMP Snooping Querier
• Independent VLAN Learning (IVL) Support
• Jumbo Ethernet Frame Support
• Port MAC Locking
• Port Mirroring
• Protected Ports
• Static MAC Filtering
• TACACS+
• Voice VLANs
• Unauthenticated VLAN
• Internal 802.1X Authentication Server

Platform
Specifications
• DHCP Server
• Maximum Number of Pools: 128
• Maximum Number of Leases (Total): 2048
• Routing
• Number of Routes: 16
• Number of Routing Interfaces: 15
• VLANs: 255
• MAC Addresses: 8k
• MSTP Instances: 4
• LAGs: 6
• ACLs: 100 with 10 Rules per Port
• Traffic Classes (Queues): 8
System
Facilities
• Event and Error Logging Facility
• Run-Time and Configuration Download Capability
• PING Utility
• FTP/TFTP Transfers via IPv4/IPv6
• Malicious Code Detection
• BootP and DHCP
• RFC 2021: Remote Network Monitoring Management Information Base Version 2
• RFC 2030: Simple Network Time Protocol (SNTP)
• RFC 2819: Remote Network Monitoring Management Information Base
• RFC 2865: RADIUS Client
• RFC 2866: RADIUS Accounting
• RFC 2868: RADIUS Attributes for Tunnel Protocol Support
• RFC 2869: RADIUS Extensions
• RFC 3579: RADIUS Support for EAP
• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
• RFC 3164: BSD Syslog Protocol
Management • Web UI
• Industry-Standard CLI
• IPv6 Management
• Password Management
• Autoinstall Support for Firmware Images and Configuration Files
• SNMP v1, v2, and v3
• SSH 1.5 and 2.0
• SSL 3.0 and TLS 1.0
• Secure Copy (SCP)
• Telnet (Multi-Session Support)
Layer 3
Routing
• Static Routing
• Policy Based Routing

QoS

• Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:
• Time-Based ACL
• Source/Destination IP Address
• TCP/UDP Source/Destination Port
• IP Protocol Type
• Type of Service (ToS) or Differentiated Services (DSCP) Field
• Source/Destination MAC Address
• EtherType
• IEEE 802.1p User Priority
• VLAN ID
• RFC 1858: Security Considerations for IP Fragment Filtering
• Optional ACL Rule Attributes
• Assign Flow to a Specific Class of Service (CoS) Queue
• Redirect Matching Traffic Flows
• Differentiated Services (DiffServ)
• Classify Traffic Based on Same Criteria as ACLs
• Mark the IP DSCP or Precedence Header Fields, Optional
• Police the Flow to a Specific Rate with Two-Color Aware Support
• RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
• RFC 2475: An Architecture for Differentiated Services
• RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
• RFC 3246: An Expedited Forwarding PHB
• RFC 3260: New Terminology and Clarifications for DiffServ
• Class of Service (CoS) Queue Mapping Configuration
• AutoVoIP: Automatic CoS Settings for VoIP
• IP DSCP-to-Queue Mapping
• Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)
• Interface Egress Shaping Rate
• Strict Priority versus Weighted Scheduling per Queue
