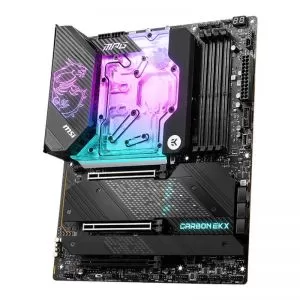

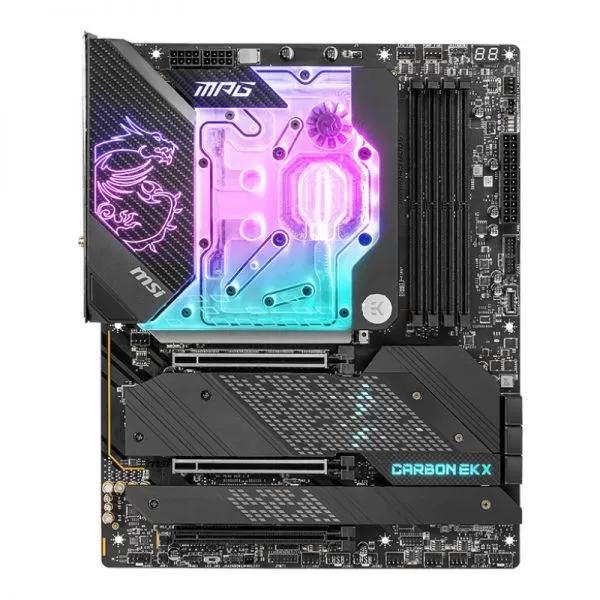

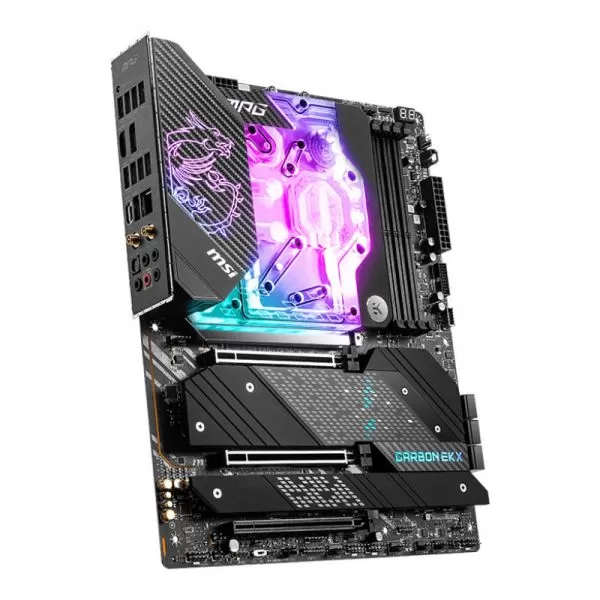

Placa de baza MSI Z690 CARBON EK X, socket 1700
Produse asemanatoare
Placa de baza MSI MPG Z690 CARBON WIFI LGA 1700 4719072896676 SPECIFICATIONS Model Name MPG Z690 CARBON EK X CPU Support Supports 12th Gen Intel® CoreTM Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z690 Chipset Graphics Interface 2x PCIe 5.0 x16 slots, 1x PCIe 3.0 x16 slot Support AMD® CrossFireTM Technology Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5-6666+ (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen3 x4 32Gbps slot, supports Intel® OptaneTM Technology 6 x SATA 6Gbps USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C), 6x USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C), 2x USB 3.2 Gen 1 5Gbps (2 Type-A), 8x USB 2.0 LAN Intel® I225-V 2.5G LAN Wireless / Bluetooth Intel® Wi-Fi 6E module, Bluetooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5 https://storage-asset.msi.com/datasheet/mb/global/MPG-Z690-CARBON-EK- X.pdf
| Caracteristici Placa de baza MSI Z690 CARBON EK X, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

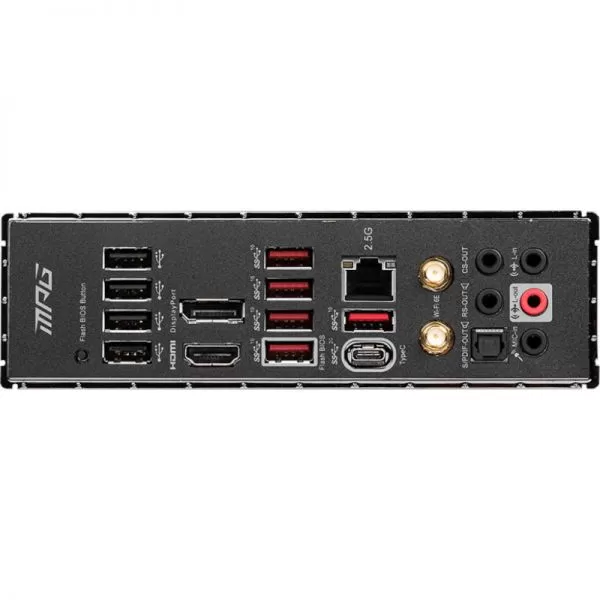

| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x16 | 2 (x16) |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 cm x 24.4 cm |
| Greutate Colet | 2 |
| Placa de baza MSI Z690 CARBON EK X, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x16 | 2 (x16) |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 cm x 24.4 cm |
| Greutate Colet | 2 |
