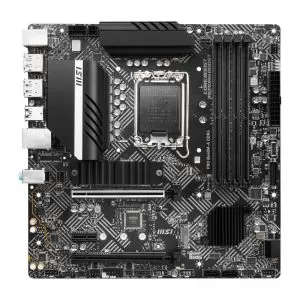

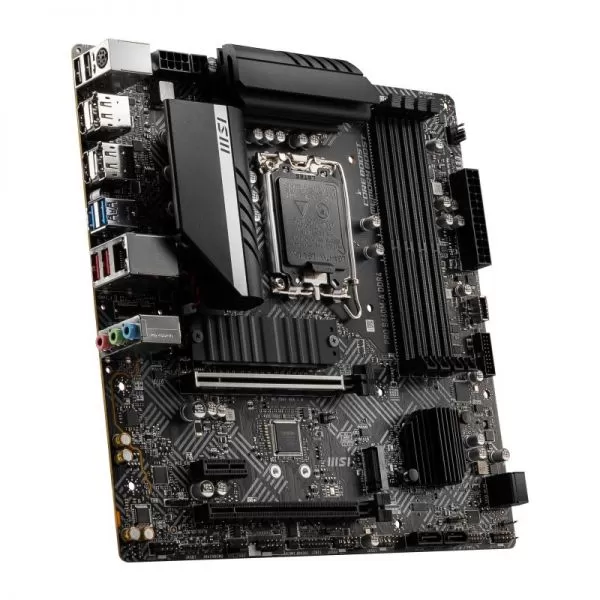

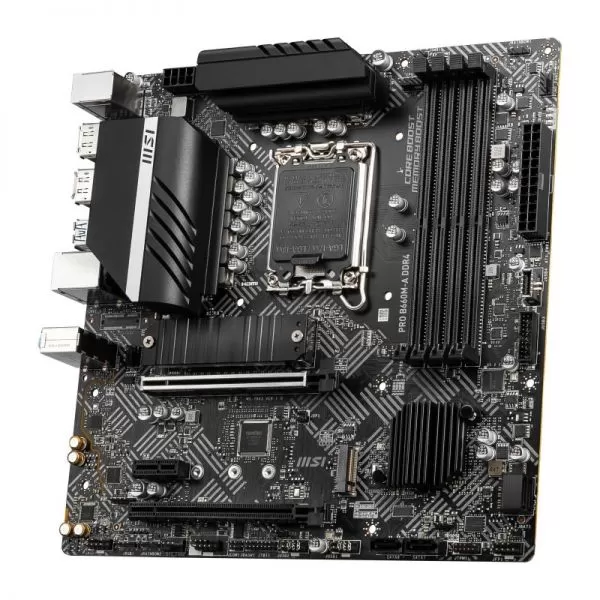

Placa de baza MSI PRO B660M-A DDR4, Socket 1700
Produse asemanatoare
Placa de baza MSI MAG PRO B660M-A DDR4 LGA 1700 911-7D43-001 / 4719072921460 Model Name PRO B660M-A DDR4 CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B660 Chipset Graphics Interface 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x16 slot Supports AMD® CrossFire™ Technology Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4800+MHz(OC) Expansion Slots 1x PCIe 3.0 x1 slot Storage 2x M.2 Gen4 x4 64Gbps slots, supports Intel® Optane™ Technology 4x SATA 6Gbps ports USB ports 2x USB 3.2 Gen 2 10Gbps (2 Type-A), 5x USB 3.2 Gen 1 5Gbps (4 Type-A + 1 Type-C), 6x USB 2.0 LAN Realtek® RTL8125BG 2.5G LAN Audio 8-Channel (7.1) HD Audio with Audio Boost https://storage-asset.msi.com/datasheet/mb/global/PRO-B660M-A-DDR4.pdf
| Caracteristici Placa de baza MSI PRO B660M-A DDR4, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B660 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek RTL8125BG |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| HDMI | 2 |
| VGA | 1 |
| DVI | Nu |
| DisplayPort | DP |

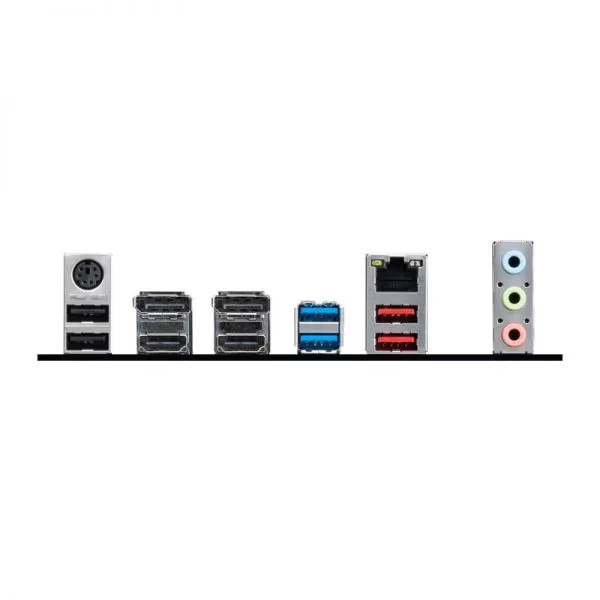

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x4, x16) |
| Sloturi M.2 | 2 |
| Wireless | Nu |
| Format | Micro ATX |
| Greutate Colet | 2 |
| Placa de baza MSI PRO B660M-A DDR4, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B660 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek RTL8125BG |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| HDMI | 2 |
| VGA | 1 |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x4, x16) |
| Sloturi M.2 | 2 |
| Wireless | Nu |
| Format | Micro ATX |
| Greutate Colet | 2 |
