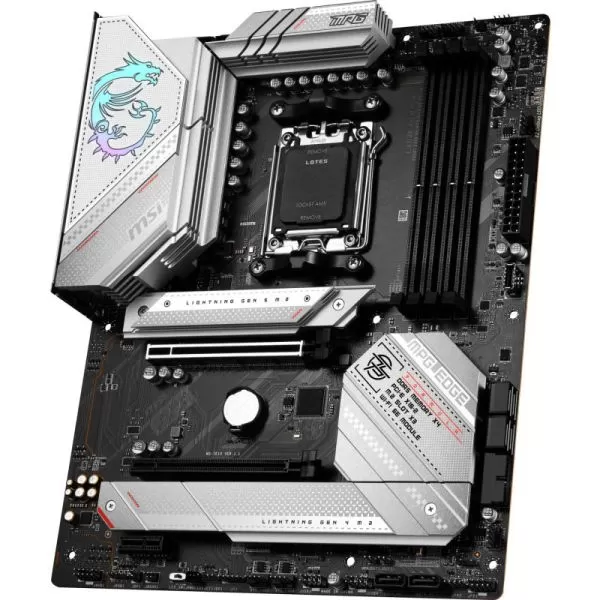

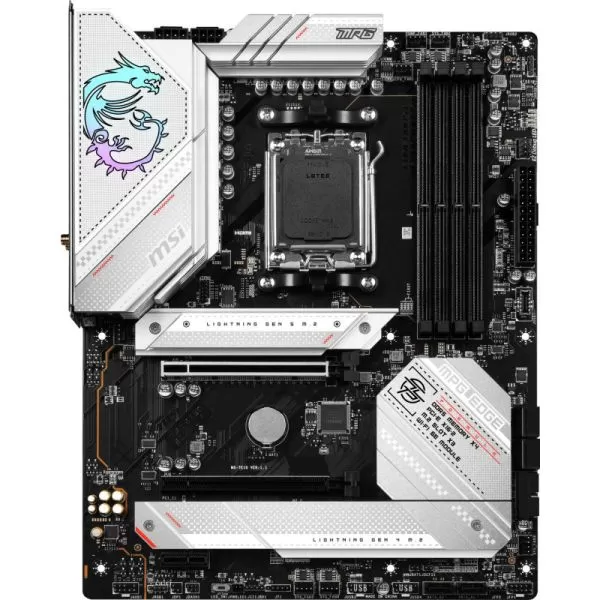

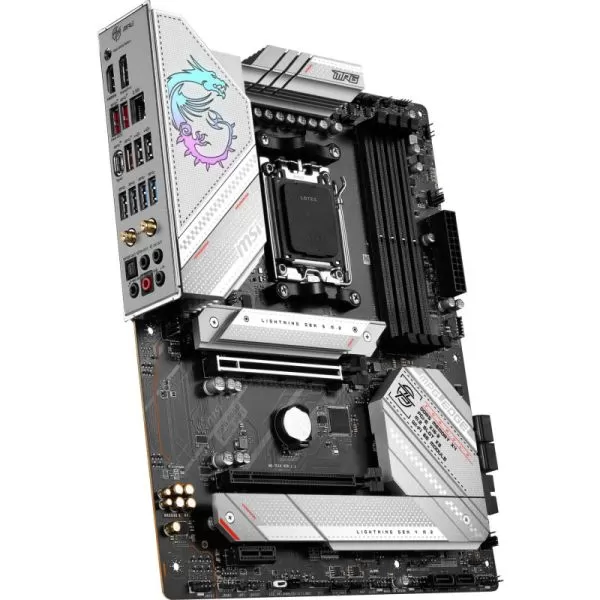

Placa de baza MSI MPG B650 EDGE WIFI, socket AM5
Produse asemanatoare
Placa de baza MSI MPG B650 EDGE WIFI AM5 SPECIFICATION Model Name MPG B650 EDGE WIFI CPU Support Supports AMD Ryzen™ 7000 Series Desktop Processors CPU Socket Socket AM5 Chipset AMD B650 Chipset Expansion Slot 2x PCIe 4.0 x16 slots 1x PCIe 3.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5-6600Mhz+ (OC) Storage 1x M.2 Gen5 x4 128Gbps slot 2x M.2 Gen4 x4 64Gbps slots 6x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C) 4x USB 3.2 Gen 2 10Gbps (1 Type-C + 3 Type-A) 6x USB 3.2 Gen 1 5Gbps (6 Type-A) 6x USB 2.0 (6 Type-A) LAN 1x Realtek® RTL8125BG 2.5Gbps LAN Wireless / Bluetooth AMD Wi-Fi 6E, Bluetooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5
| Caracteristici Placa de baza MSI MPG B650 EDGE WIFI, socket AM5: | |
| CPU Socket | AM5 |
| Chipset | B650 |
| Procesoare suportate | AMD Ryzen 7000 |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

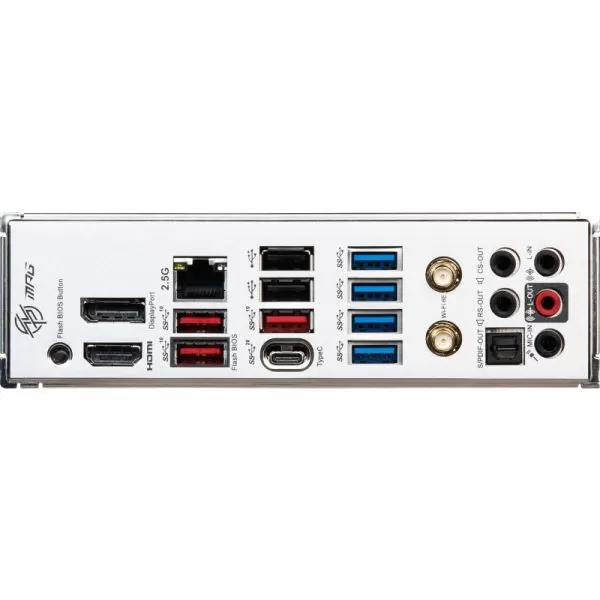

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Greutate Colet | 2 |
| Placa de baza MSI MPG B650 EDGE WIFI, socket AM5 | |
| CPU Socket | AM5 |
| Chipset | B650 |
| Procesoare suportate | AMD Ryzen 7000 |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Greutate Colet | 2 |
