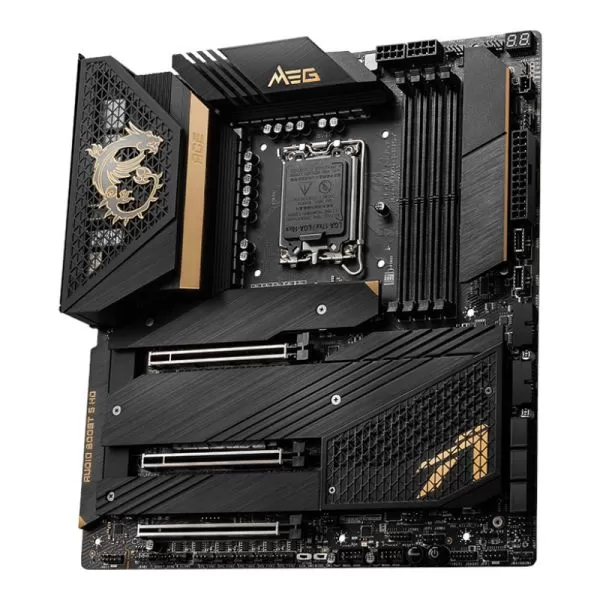

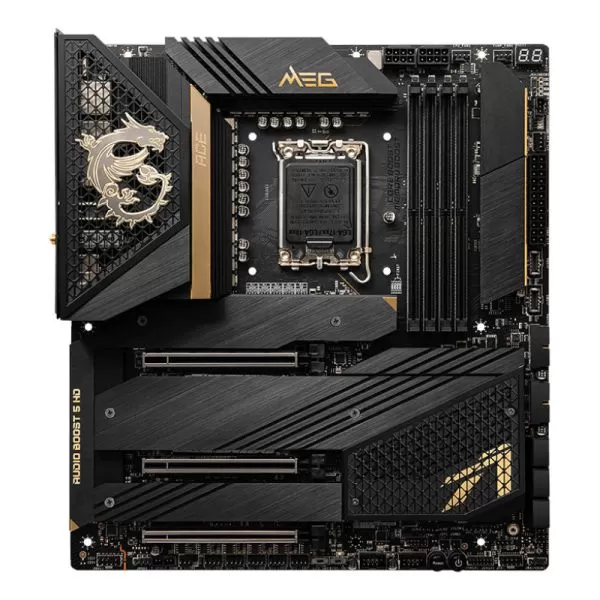

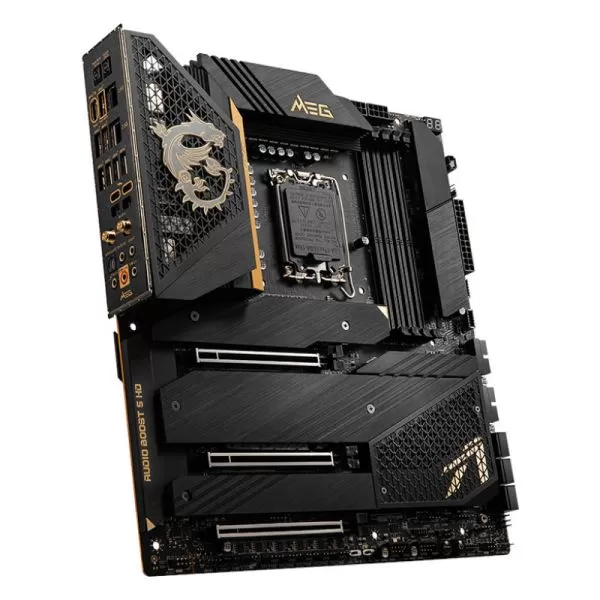

Placa de baza MSI MEG Z690 ACE, socket 1700
Produse asemanatoare
Placa de baza MSI MEG Z690 ACE DDR5 LGA 1700 4719072886493 SPECIFICATIONS Model Name MEG Z690 ACE CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z690 Chipset Graphics Interface 2x PCIe 5.0 x16 slots 1x PCIe 4.0 x16 slot AMD® CrossFire™ Technology Display Interface 1x Type-C Display port – Requires Processor Graphics 2x Thunderbolt™ 4 (Type-C) – Input from mini DisplayPort Memory Support 4 DIMMs, Dual Channel DDR5-6666+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen3 x4 32Gbps slot, 6x SATA 6Gb/s ports Thunderbolt™ 4 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W 2x Mini DisplayPort input ports USB ports 2x USB 3.2 Gen 2x2 20Gbps (2 Type-C), 8x USB 3.2 Gen 2 10Gbps (7 Type-A + 1 Type-C), 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 4x USB 2.0 LAN 2x Intel® I225-V 2.5G LAN WiFi / BT Intel® Wi-Fi 6E module, Bluetooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5 HD https://www.msi.com/Motherboard/MEG-Z690-ACE/Specification
| Caracteristici Placa de baza MSI MEG Z690 ACE, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC4082 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 5 |
| Wireless | Da |
| Bluetooth | Da |
| Format | E-ATX |
| Dimensiuni (L x l, cm) | 30.5 x 27.7 |
| Greutate Colet | 2 |
| Placa de baza MSI MEG Z690 ACE, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC4082 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 5 |
| Wireless | Da |
| Bluetooth | Da |
| Format | E-ATX |
| Dimensiuni (L x l, cm) | 30.5 x 27.7 |
| Greutate Colet | 2 |
