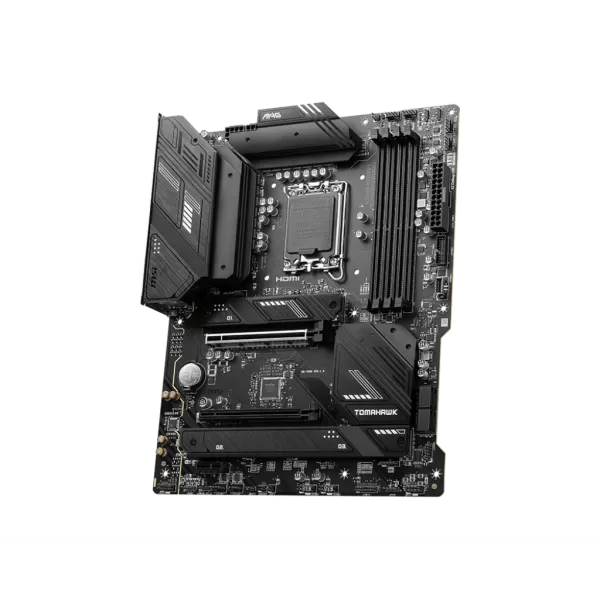

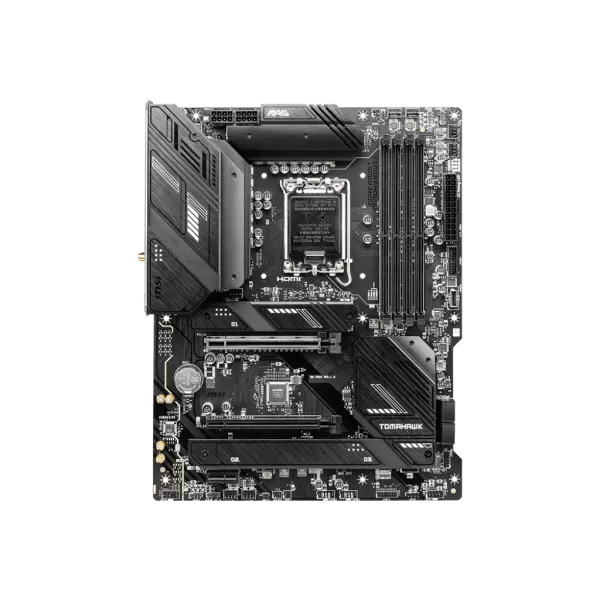

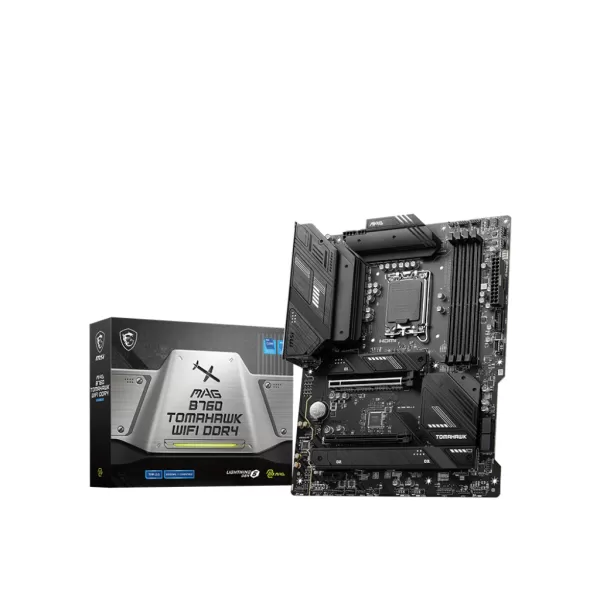

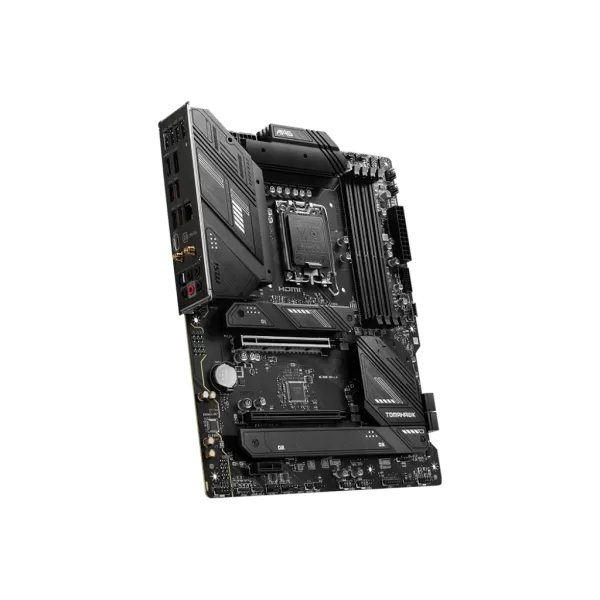

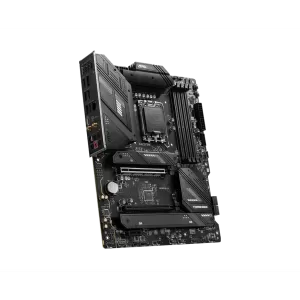

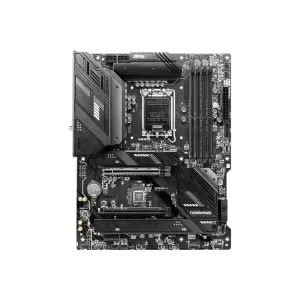

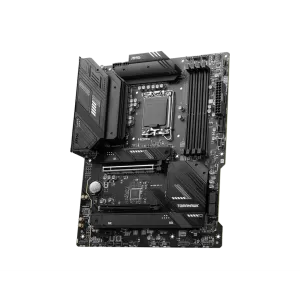

Placa de baza MSI MAG B760 TOMAHAWK WIFI DDR4, Socket 1700
Produse asemanatoare
Placa de baza MSI MAG B760 TOMAHAWK WIFI LGA1700 DDR4 SPECIFICATIONS Model Name MAG B760 TOMAHAWK WIFI DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 4.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4 5333+MHz (OC) Storage 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 5x USB 3.2 Gen 2 10Gbps (Type-A + Type-C), 2x USB 3.2 Gen 1 5Gbps (Type-A), 8x USB 2.0 LAN Realtek® RTL8125BG 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
| Caracteristici Placa de baza MSI MAG B760 TOMAHAWK WIFI DDR4, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 5 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

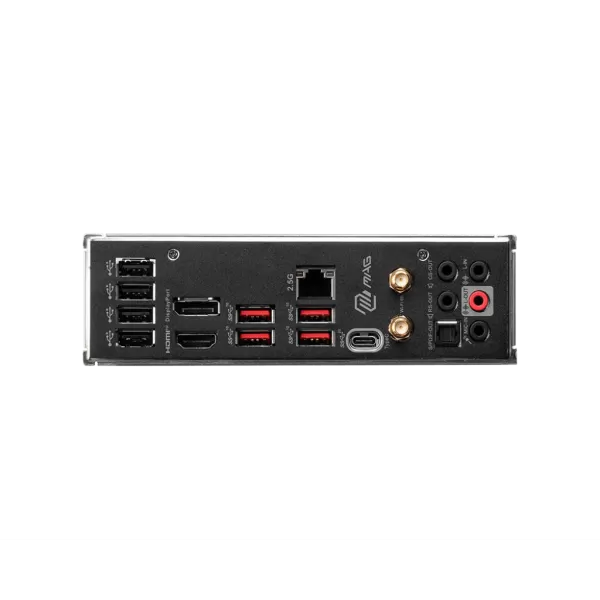

| Porturi externe | Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 2 |
| Placa de baza MSI MAG B760 TOMAHAWK WIFI DDR4, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 5 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 2 |
