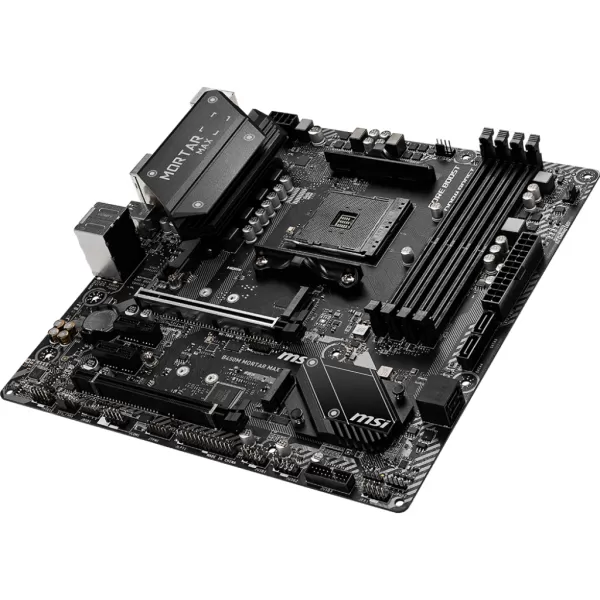

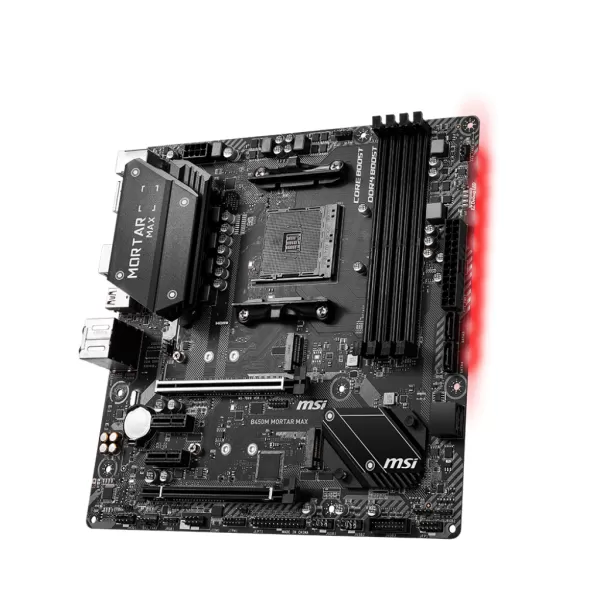

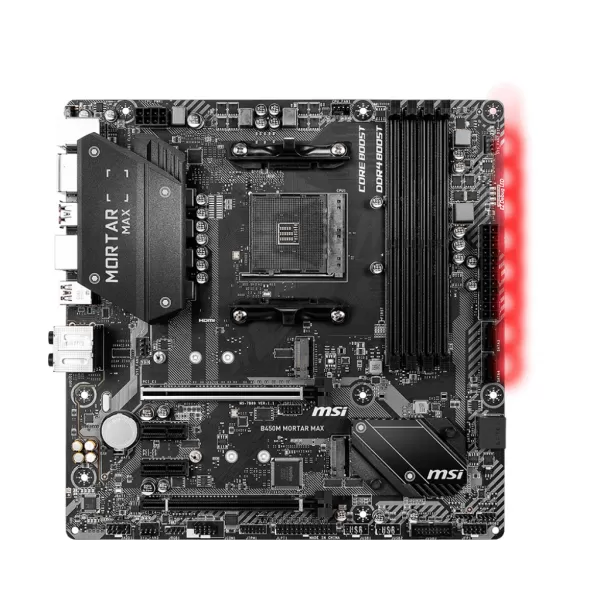

Placa de baza MSI B450M MORTAR MAX, Socket AM4
Produse asemanatoare
Placa de baza MSI AMD B450M MORTAR MAX Model Name B450M MORTAR MAX CPU Support Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 CPU Socket Socket AM4 Chipset AMD® B450 Chipset Graphics Interface 1 x PCI-E 3.0 x16 slot + 1 x PCI-E 2.0 x16 slot Supports 2-way CrossFire Display Interface HDMI, DisplayPort – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4133 Expansion Slots 2 x PCI-E x1 slots Storage 2 x M.2 slots, 4 x SATA 6Gb/s USB ports 2 x USB 3.2 (Gen2) + 6 x USB 3.2 (Gen1) + 6 x USB 2.0 LAN Realtek® 8111H Gigabit LAN Audio 8-Channel(7.1) HD Audio with Audio Boost 4719072653811
| Caracteristici Placa de baza MSI B450M MORTAR MAX, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | B450 |
| Procesoare suportate | AMD Ryzen 1st, 2nd and 3rd Gen / Ryzen with Radeon Vega Graphics Processors for socket AM4 |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200(OC)/ 3066(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Audio integrat | Realtek ALC892 |
| LAN integrat | Realtek RTL8111H-CG |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 6 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

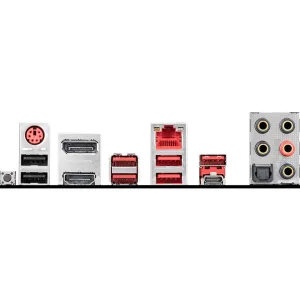

| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 1 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
| Placa de baza MSI B450M MORTAR MAX, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | B450 |
| Procesoare suportate | AMD Ryzen 1st, 2nd and 3rd Gen / Ryzen with Radeon Vega Graphics Processors for socket AM4 |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200(OC)/ 3066(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Audio integrat | Realtek ALC892 |
| LAN integrat | Realtek RTL8111H-CG |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 6 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 1 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
