Placa de baza Gigabyte Z590 AORUS XTREME, Socket 1200

Placa de baza Gigabyte Z590 AORUS XTREME LGA 1200 CPU LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) Chipset Intel® Z590 Express Chipset Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller: 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1- 7, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3 Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier * The front panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2) Wireless Communication module Intel® Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/Z590-AORUS-XTREME-rev-10/sp#sp

Caracteristici Placa de baza Gigabyte Z590 AORUS XTREME, Socket 1200:
CPU Socket	1200
Chipset	Z590
Procesoare suportate	Intel 11th/10th Generation Core/Pentium/Celeron
Memorii suportate	DDR4
Sloturi memorie	4
Suport Dualchannel	Da
Frecventa memorie (MHz)	5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133
Video integrat	Da
Slot video	PCI Express
Tip video integrat	Necesita procesor cu tehnologia Intel HD Graphics
Audio integrat	Realtek ALC1220-VB
LAN integrat	10/100/1000/2500 Mbps Intel 2.5GbE
Interfata Serial ATA	6 x SATA III
RAID integrat	0, 1, 5, 10
Tip port USB 3.1/3.2	Type-A
Porturi USB 3.0	8
HDMI	1
VGA	Nu
DVI	Nu
DisplayPort	Nu

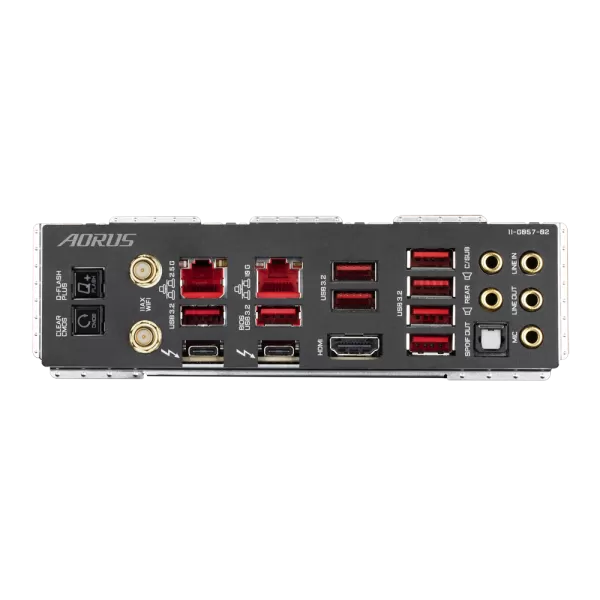

Porturi externe	2xRJ45, Optical S/PDIF Out, Audio
Sloturi PCI-E x1	2
Sloturi PCI-E x16	3 (x16 / x8 / x4)
Sloturi M.2	2
Wireless	Da
Format	E-ATX
Dimensiuni (L x l, cm)	30.5 x 27
Greutate Colet	2
