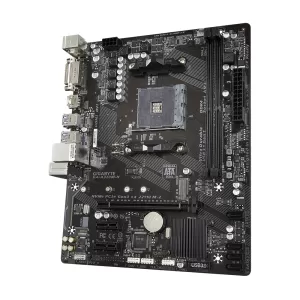

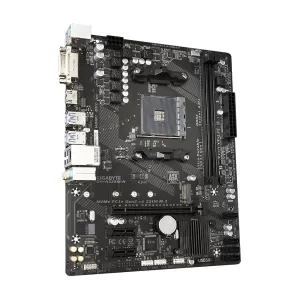

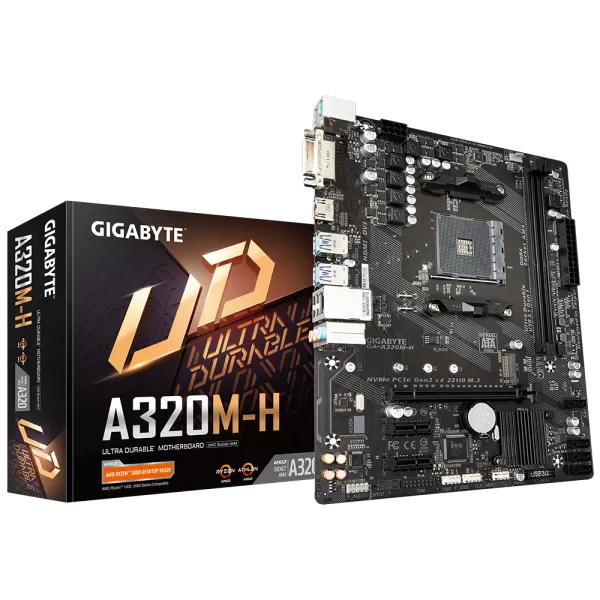

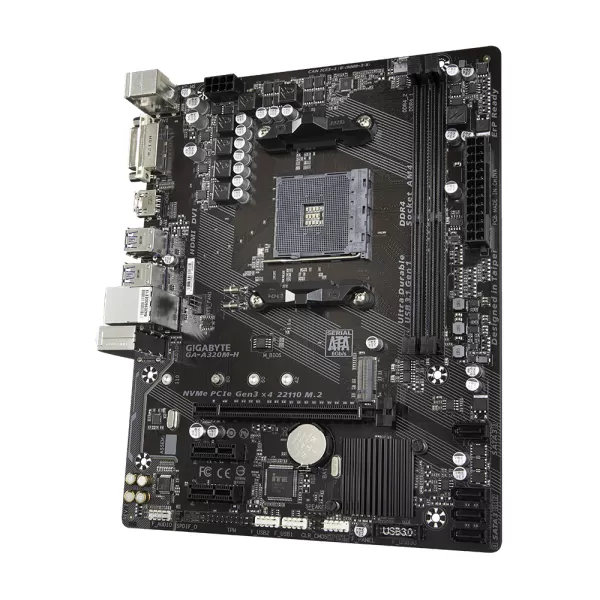

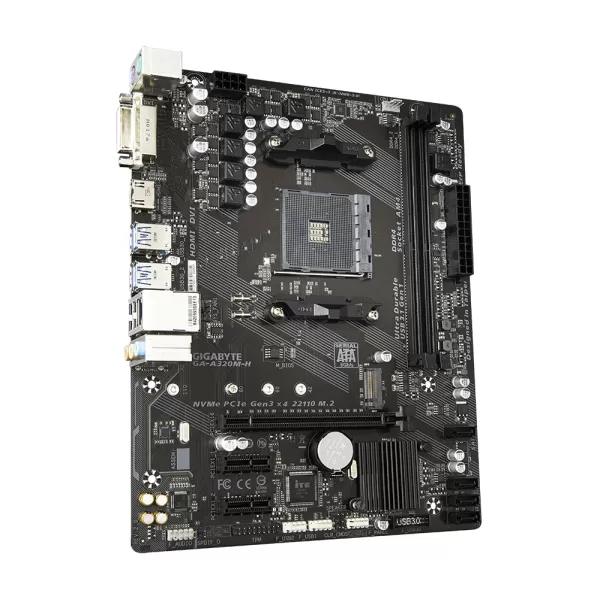

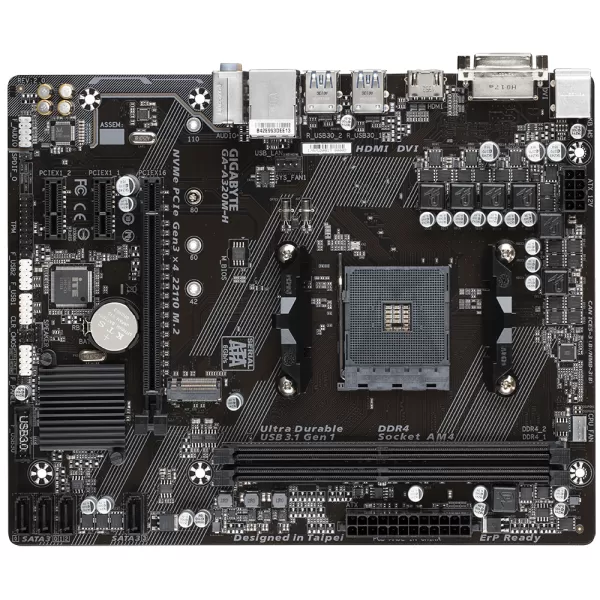

Placa de baza Gigabyte A320M-H rev2.0, Socket AM4
Produse asemanatoare
Placa de baza Gigabyte A320M-H 2.0 AM4 CPU AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors (Please refer "CPU Support List" for more information.) Chipset AMD A320 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 2 GB * Actual support may vary by CPU. Audio Realtek® audio codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out https://www.gigabyte.com/Motherboard/GA-A320M-H-rev-20/sp#sp
| Caracteristici Placa de baza Gigabyte A320M-H rev2.0, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | A320 |
| Procesoare suportate | AMD AM4 Socket for AMD Ryzen™ |
| Memorii suportate | DDR4 |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 3200(O.C.)/2933(O.C.)/2667/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD R Series Graphics |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000 Realtek GbE |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | 1 |
| DisplayPort | Nu |

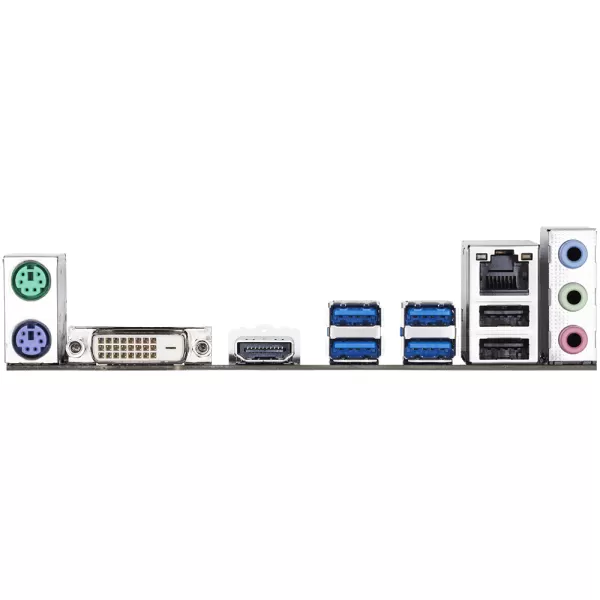

| Porturi externe | PS/2 keyboard, PS/2 mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 1 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 19.5 |
| Greutate Colet | 1 |
| Placa de baza Gigabyte A320M-H rev2.0, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | A320 |
| Procesoare suportate | AMD AM4 Socket for AMD Ryzen™ |
| Memorii suportate | DDR4 |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 3200(O.C.)/2933(O.C.)/2667/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD R Series Graphics |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000 Realtek GbE |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | 1 |
| DisplayPort | Nu |
| Porturi externe | PS/2 keyboard, PS/2 mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 1 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 19.5 |
| Greutate Colet | 1 |
