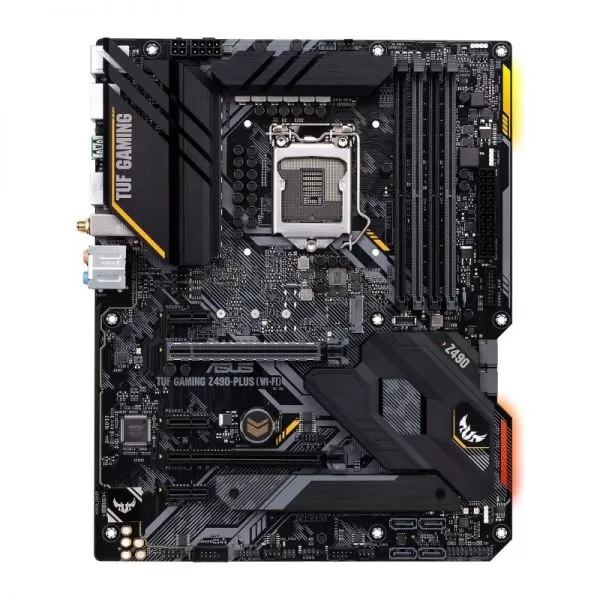

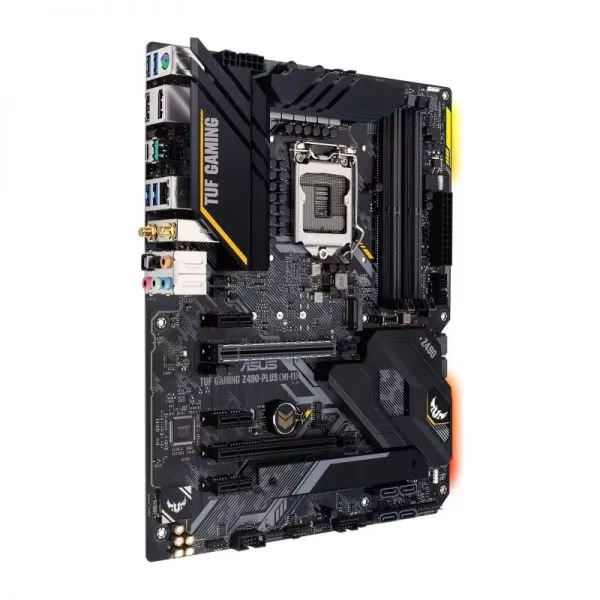

Placa de baza ASUS TUF GAMING Z490-PLUS (WI-FI), Socket 1200
Produse asemanatoare
Placa de baza Asus TUF Gaming Z490-Plus (WI-FI) Socket LGA 1200 Intel® Z490 (LGA 1200) ATX gaming motherboard with M.2, 14 DrMOS power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderbolt™ 3 support, and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors Enhanced power solution: 12+2 DrMOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: Front header for USB 3.2 Gen 2 Type-C and Thunderbolt 3™ support Made for online gaming: Intel® WiFi 6, Intel® Ethernet Connection I219- V, TUF LANGuard and TurboLAN technology Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips https://www.asus.com/Motherboards/TUF-GAMING-Z490-PLUS-WI-FI/
| Caracteristici Placa de baza ASUS TUF GAMING Z490-PLUS (WI-FI), Socket 1200: | |
| CPU Socket | 1200 |
| Chipset | Z490 |
| Procesoare suportate | 10th Generation Intel Core, Pentium Gold, Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC S1220A |
| LAN integrat | 10/100/1000 Intel I219-V |
| Interfata Serial ATA | 6 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 6 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

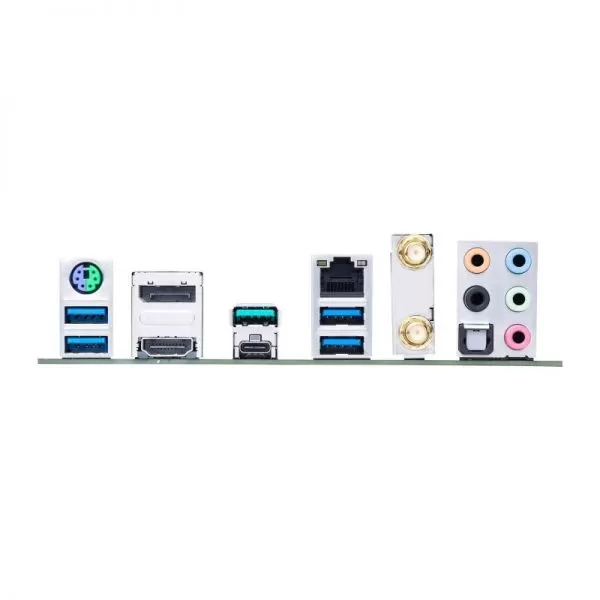

| Porturi externe | PS/2 keyboard/mouse, RJ45, Optical S/PDIF Out, Audio |
| Sloturi PCI-E x1 | 3 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
| Placa de baza ASUS TUF GAMING Z490-PLUS (WI-FI), Socket 1200 | |
| CPU Socket | 1200 |
| Chipset | Z490 |
| Procesoare suportate | 10th Generation Intel Core, Pentium Gold, Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC S1220A |
| LAN integrat | 10/100/1000 Intel I219-V |
| Interfata Serial ATA | 6 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 6 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Optical S/PDIF Out, Audio |
| Sloturi PCI-E x1 | 3 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
