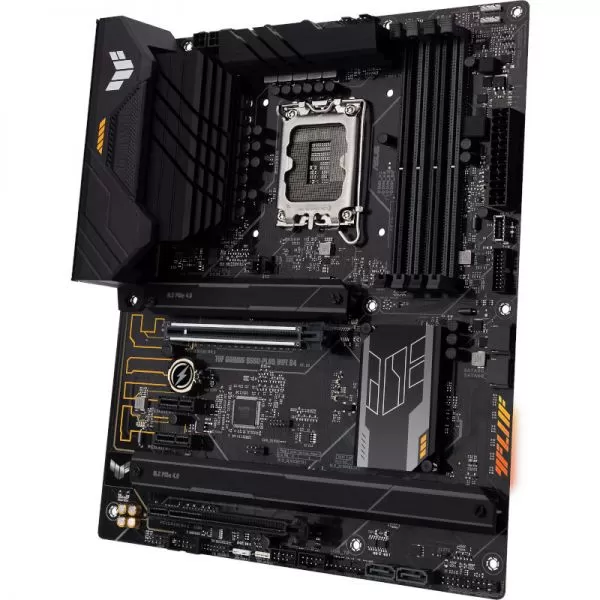

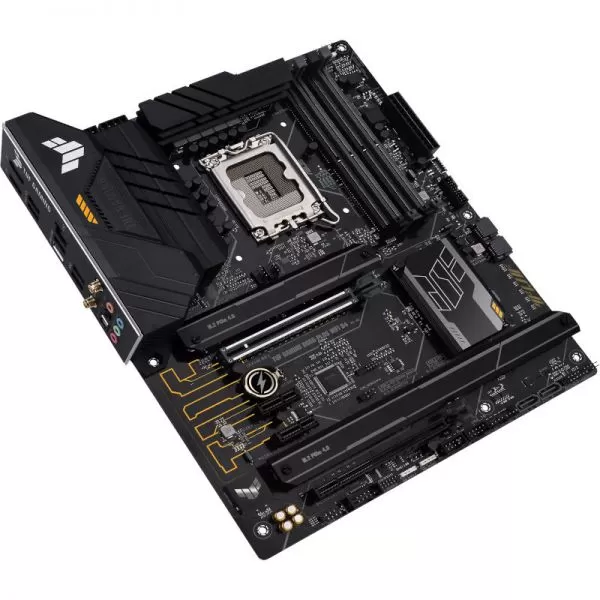

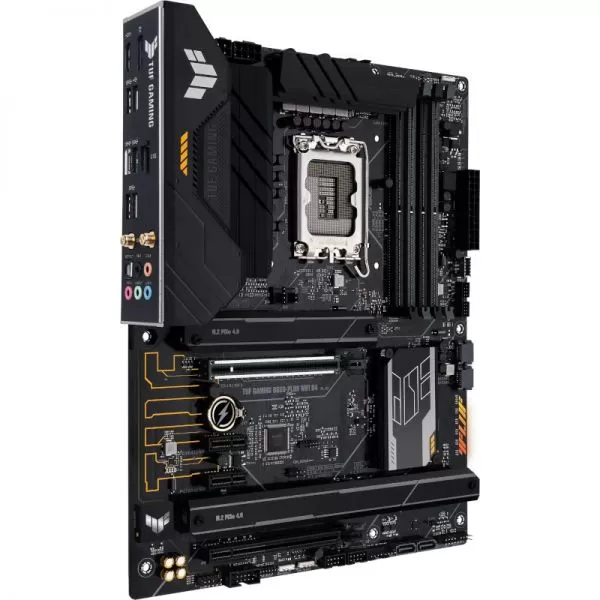

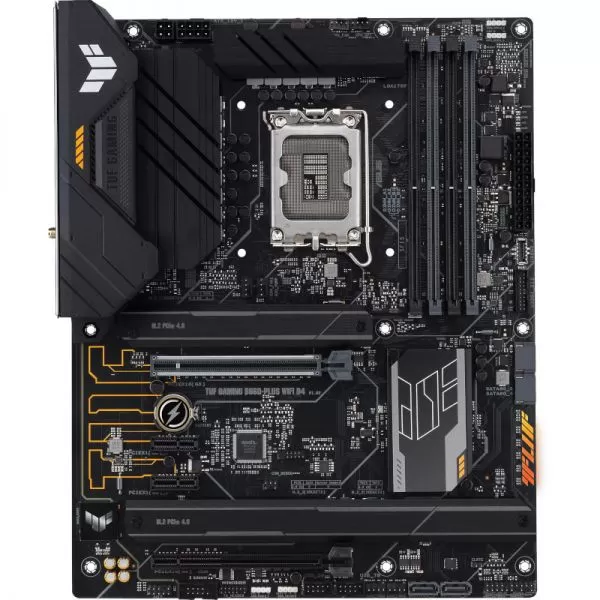

Placa de baza ASUS TUF GAMING B660-PLUS WIFI D4, socket 1700
Produse asemanatoare
Placa de baza Asus TUF GAMING B660-PLUS WIFI D4 ntel® B660 (LGA 1700) ATX motherboard with PCIe 5.0 slot, three PCIe 4.0 M.2 slots, 10+1 DrMOS, Intel® 2.5Gb Ethernet, DisplayPort, HDMI, front USB 3.2 Gen 2 Type-C®, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt 4™ support Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences https://www.asus.com/Motherboards-Components/Motherboards/TUF- Gaming/TUF-Gaming-B660-PLUS-WIFI-D4/
| Caracteristici Placa de baza ASUS TUF GAMING B660-PLUS WIFI D4, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B660 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 5 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 1 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 (x16) |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 cm x 24.4 cm |
| Greutate Colet | 2 |
| Placa de baza ASUS TUF GAMING B660-PLUS WIFI D4, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B660 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 5 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 1 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 (x16) |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 cm x 24.4 cm |
| Greutate Colet | 2 |
