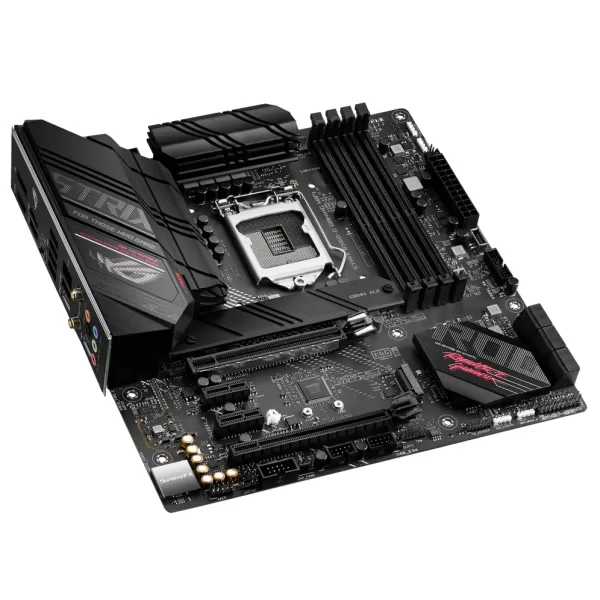

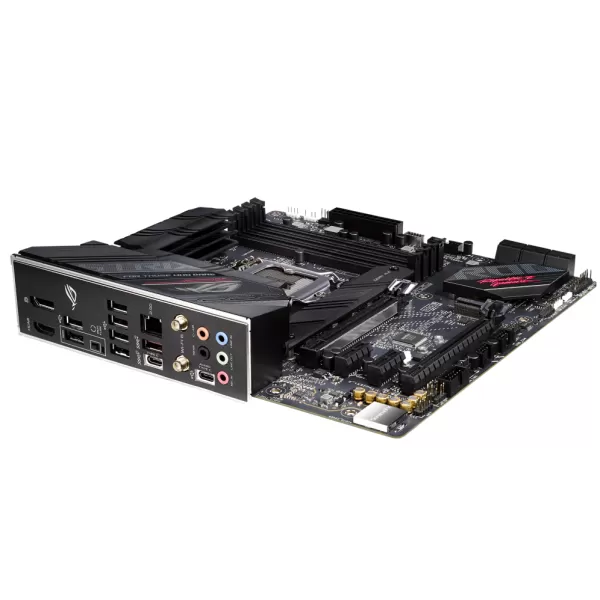

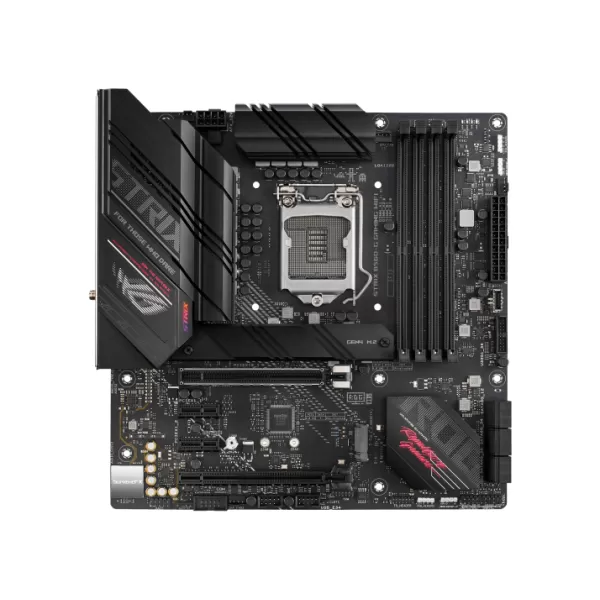

Placa de baza ASUS ROG STRIX B560-G GAMING WIFI, Socket 1200
Produse asemanatoare
Placa de baza Asus ROG STRIX B560-G GAMING WIFI Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors Smooth Networking: On-board Intel® WiFi 6 AX200 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots and USB 3.2 Gen 2x2 USB Type-C® DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard https://rog.asus.com/motherboards/rog-strix/rog-strix-b560-f-gaming- wifi-model/spec
| Caracteristici Placa de baza ASUS ROG STRIX B560-G GAMING WIFI, Socket 1200: | |
| CPU Socket | 1200 |
| Chipset | B560 |
| Procesoare suportate | Intel 11th/10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | 7.1 Audio with ROG SupremeFX 7.1 S1220A |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 6 x SATA III |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 7 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ-45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4cm x 24.4cm |
| Greutate Colet | 1 |
| Placa de baza ASUS ROG STRIX B560-G GAMING WIFI, Socket 1200 | |
| CPU Socket | 1200 |
| Chipset | B560 |
| Procesoare suportate | Intel 11th/10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | 7.1 Audio with ROG SupremeFX 7.1 S1220A |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 6 x SATA III |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 7 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ-45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4cm x 24.4cm |
| Greutate Colet | 1 |
