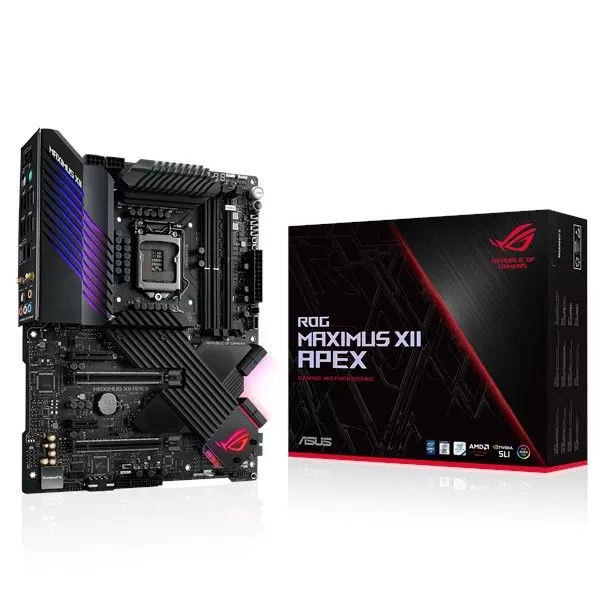

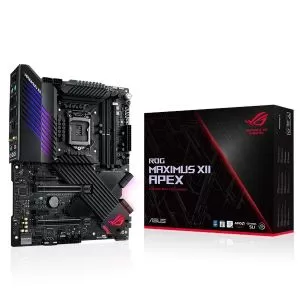

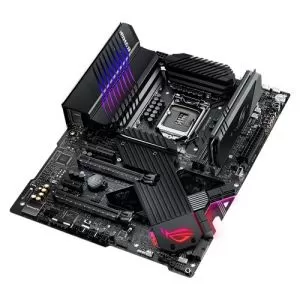

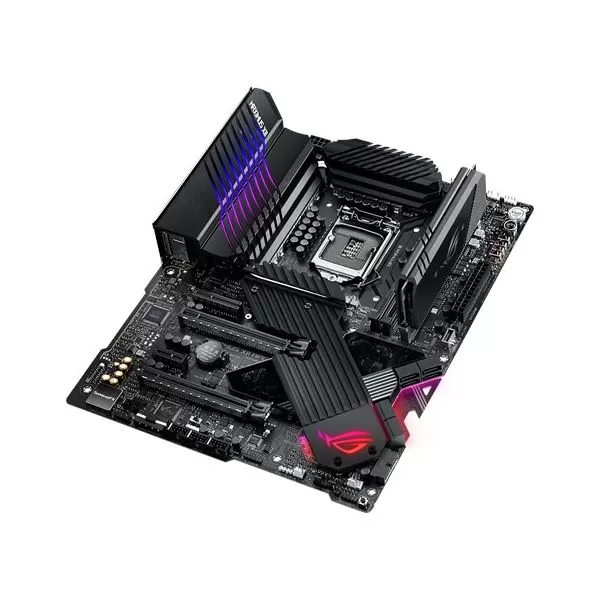

Placa de baza ASUS ROG MAXIMUS XII APEX, Socket 1200

Placa de baza Asus Z490 ROG MAXIMUS XII APEX Socket LGA 1200 CPU Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Build in Intel® Z490 Memory Intel® 10th Gen Processors 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400 (O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466 (O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933 (O.C.)/2800(O.C.)/2666/2133 MHz Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Double Capcity DRAM support depends on the DRAM models Multi-GPU Support Supports NVIDIA® 2-Way SLI® Technology Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8) Intel® Z490 Chipset 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1 Storage Intel® Z490 Chipset : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s)*3 Support Raid 0, 1, 5 ASMedia® SATA 6Gb/s controller : 2 x SATA 6Gb/s port(s), Intel® Optane™ Memory Ready LAN Intel® I225-V 2.5Gb Ethernet, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard Wireless Data Network Intel® Wi-Fi 6 AX201 Wi-Fi Intel® Wi-Fi 6 Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Bluetooth Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity https://www.asus.com/Motherboards/ROG-MAXIMUS-XII-APEX/specifications/

Produsul a fost adaugat pe site in data de 19.06.2020
