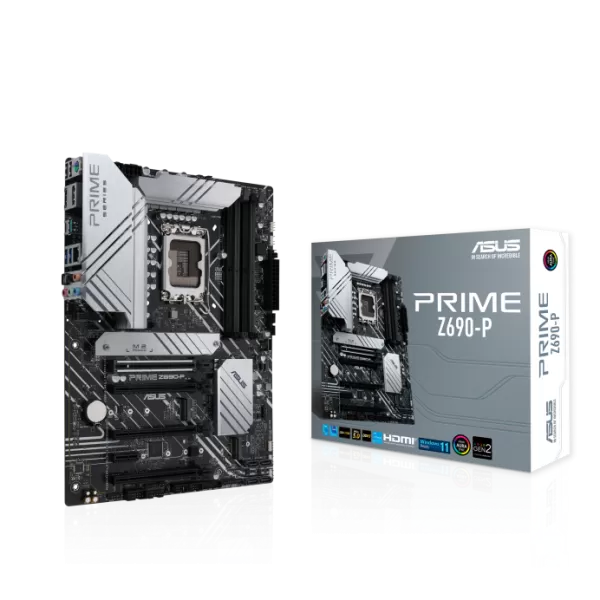

Placa de baza ASUS PRIME Z690-P, Socket 1700
Produse asemanatoare
Placa de baza Asus PRIME Z690-P LGA 1700 Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting Intel® LGA 1700 socket: Ready for 12th gen Intel® processors Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: DDR5, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME- Z690-P/
| Caracteristici Placa de baza ASUS PRIME Z690-P, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek 7.1 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 4 (x16/x4/x4/x4) |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 23.4 |
| Greutate Colet | 1.5 |
| Placa de baza ASUS PRIME Z690-P, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek 7.1 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 4 (x16/x4/x4/x4) |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 23.4 |
| Greutate Colet | 1.5 |
