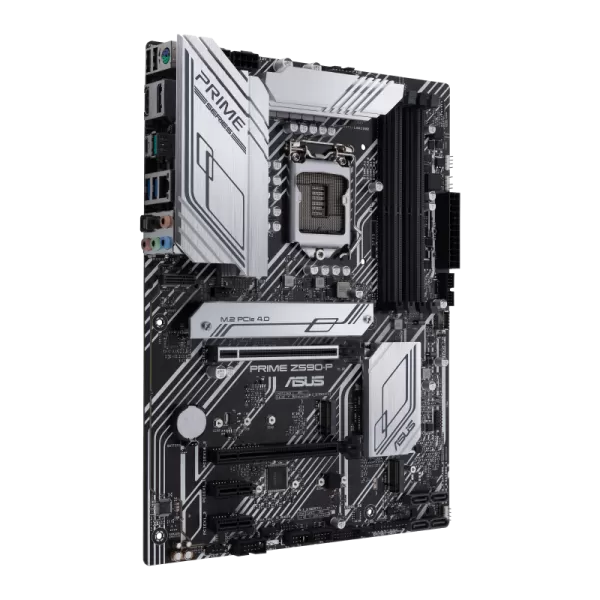

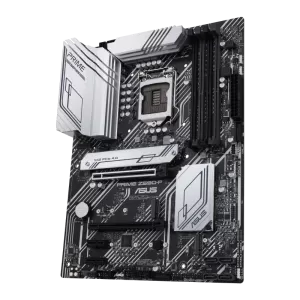

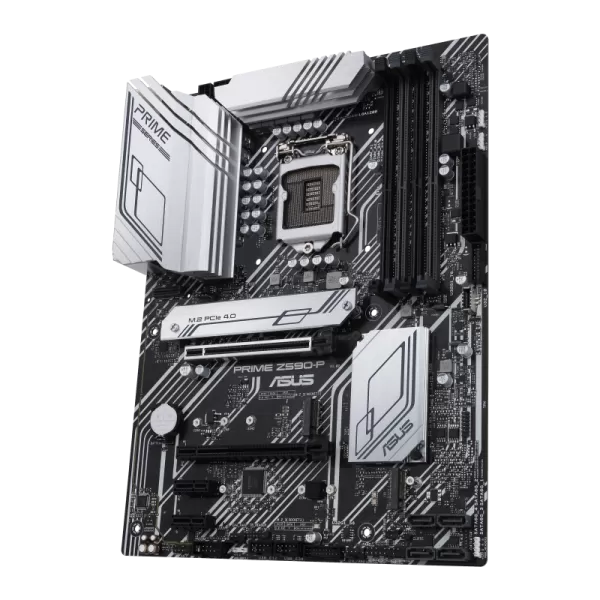

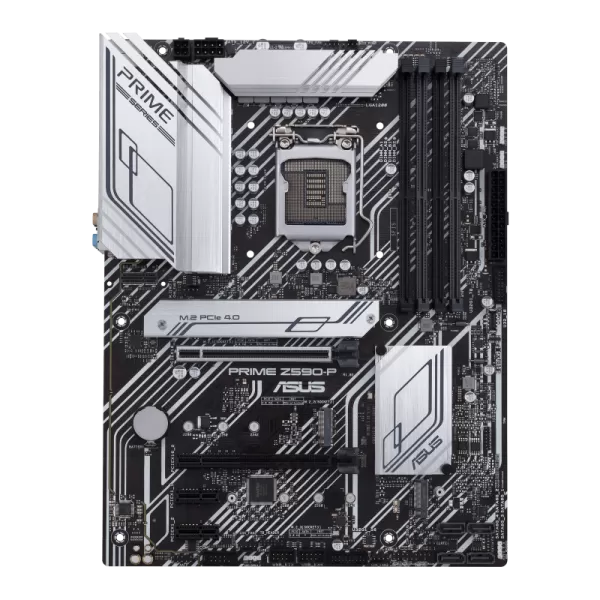

Placa de baza ASUS PRIME Z590-P, Socket 1200
Produse asemanatoare
Placa de baza Asus PRIME Z590-P LGA 1200 Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2 slots, 11 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type- C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support https://www.asus.com/Motherboards-Components/Motherboards/All- series/PRIME-Z590-P
| Caracteristici Placa de baza ASUS PRIME Z590-P, Socket 1200: | |
| CPU Socket | 1200 |
| Chipset | Z590 |
| Procesoare suportate | Intel 11th/10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

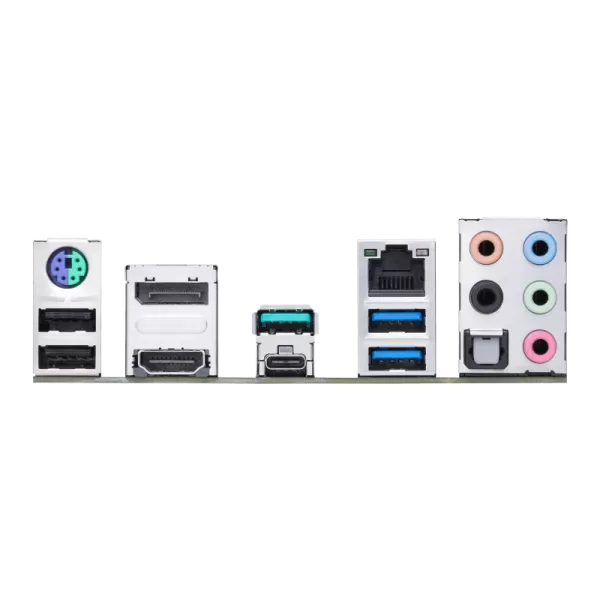

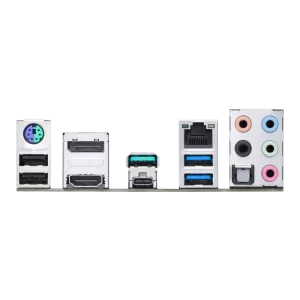

| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ-45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 3 |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
| Placa de baza ASUS PRIME Z590-P, Socket 1200 | |
| CPU Socket | 1200 |
| Chipset | Z590 |
| Procesoare suportate | Intel 11th/10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ-45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 3 |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
