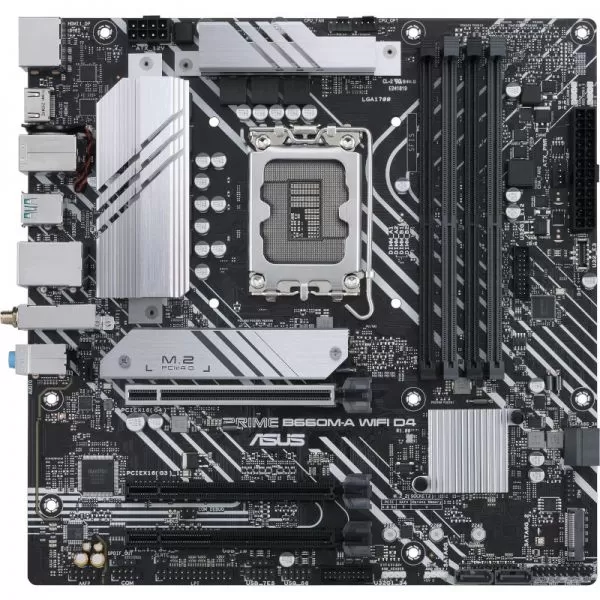

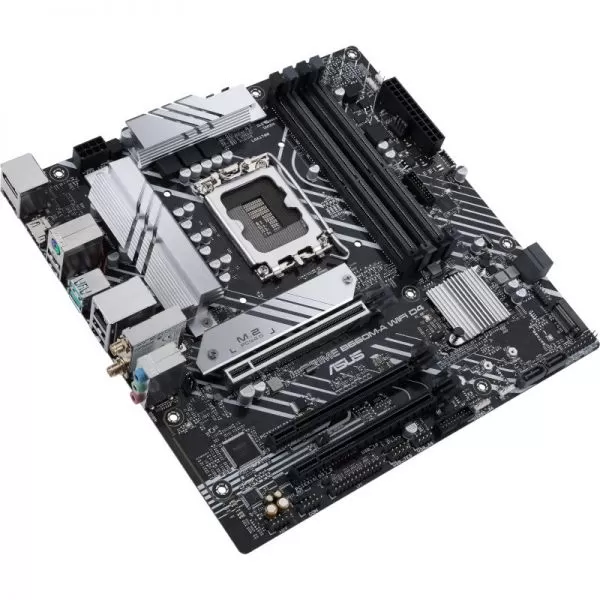

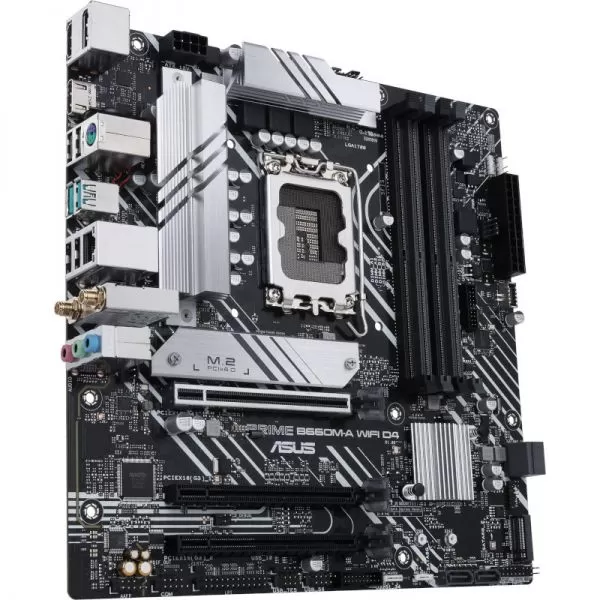

Placa de baza ASUS PRIME B660M-A WIFI D4, socket 1700
Placa de baza Asus PRIME B660M-A WIFI D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Ultrafast connectivity : Intel® Wi-Fi 6, PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME- B660M-A-WIFI-D4/
| Caracteristici Placa de baza ASUS PRIME B660M-A WIFI D4, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B660 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000 Mbps Intel |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 2 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 4 |
| HDMI | 2 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

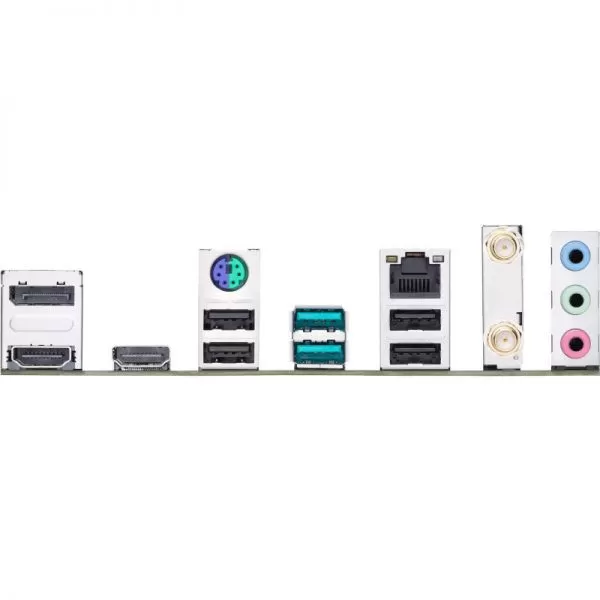

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16) |
| Sloturi M.2 | 2 |
| Wireless | Da |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4cm x 24.4cm |
| Greutate Colet | 2 |
| Placa de baza ASUS PRIME B660M-A WIFI D4, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B660 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000 Mbps Intel |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 2 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 4 |
| HDMI | 2 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16) |
| Sloturi M.2 | 2 |
| Wireless | Da |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4cm x 24.4cm |
| Greutate Colet | 2 |
