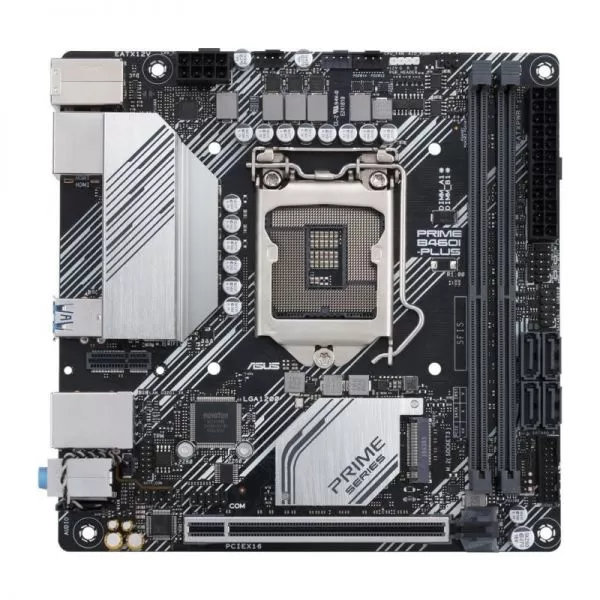

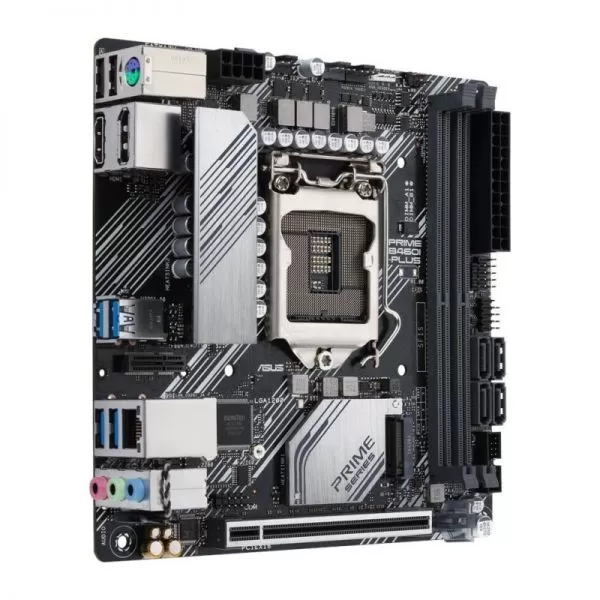

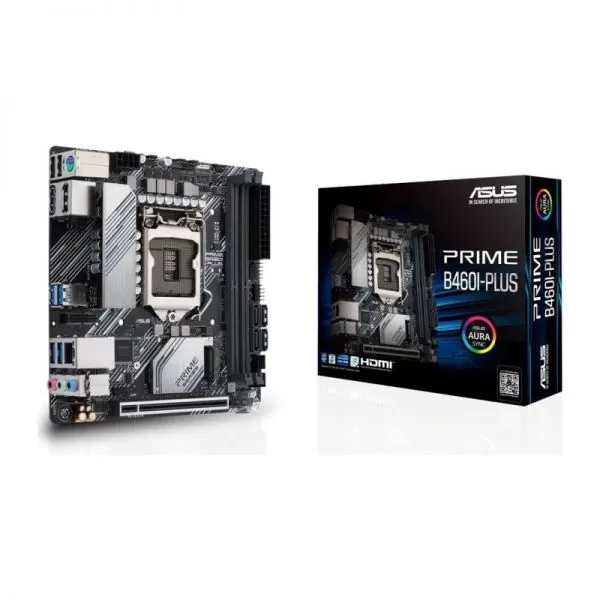

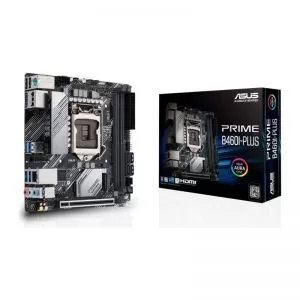

Placa de baza ASUS PRIME B460I-PLUS, Socket 1200

Placa de baza Asus PRIME B460I-PLUS LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B460 Memory Intel® B460 Chipset 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un- buffered Memory * Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor- Intel® UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Expansion Slots 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard Wireless Data Network M.2 slot only (Key E) (Support PCIe interface)* *Wi-Fi module is sold separately. Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME- B460I-PLUS/techspec/

Produsul a fost adaugat pe site in data de 12.03.2021
