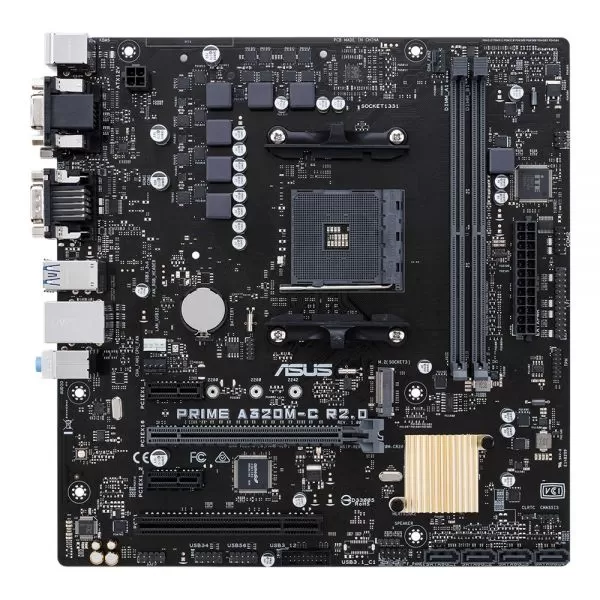

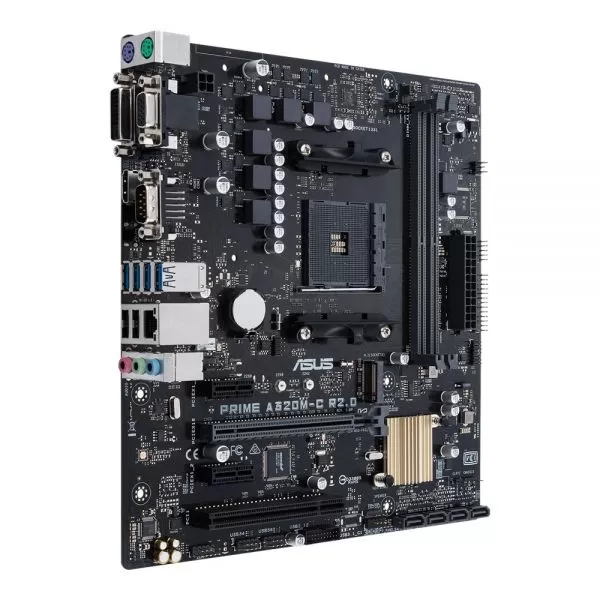

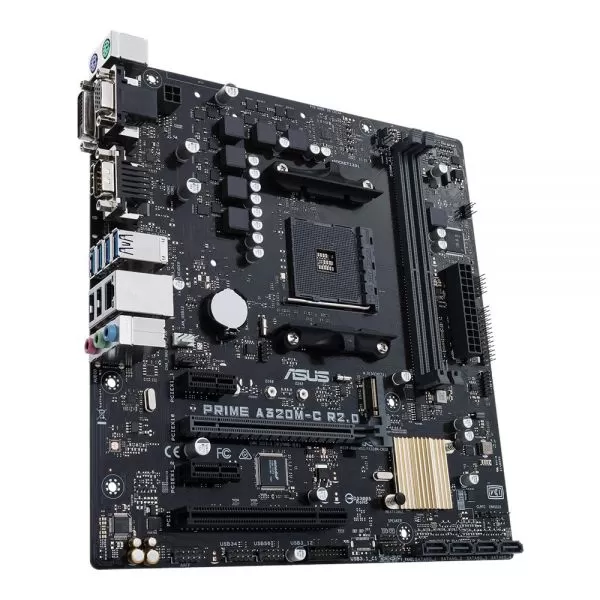

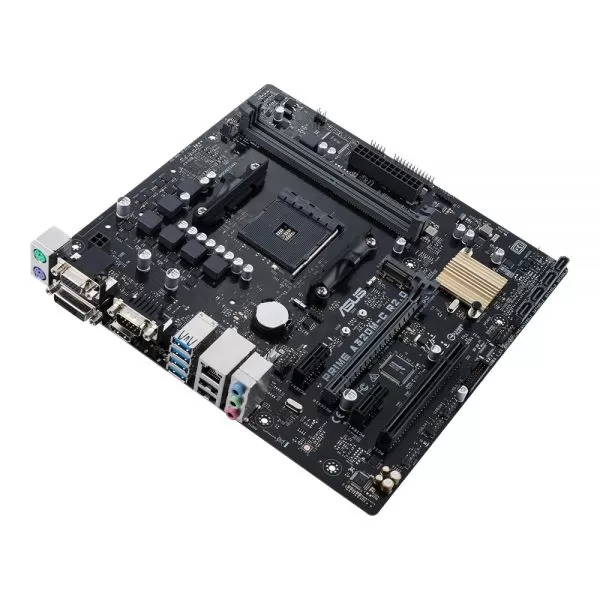

Placa de baza ASUS PRIME A320M-C R2.0, Socket AM4

Placa de baza Asus AMD PRIME A320M-C R2.0 uATX Chipset AMD A320 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively) Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A- series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD A320 chipset 2 x PCIe 2.0 x4 1 x PCI Storage AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC USB Ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) Special Features ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 6 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header 1 x Speaker connector Accessories User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 9.3 inch ( 24.4 cm x 23.6 cm )

Caracteristici Placa de baza ASUS PRIME A320M-C R2.0, Socket AM4:
CPU Socket	AM4
Chipset	A320
Procesoare suportate	3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen
Memorii suportate	DDR4
Sloturi memorie	2
Suport Dualchannel	Da
Frecventa memorie (MHz)	3200(O.C.)/2933(O.C.)/2666/2400/2133
Video integrat	Da
Slot video	PCI Express
Tip video integrat	Necesita procesor AMD cu placa video integrata
Audio integrat	Realtek ALC887
LAN integrat	10/100/1000 Realtek RTL8111H
Interfata Serial ATA	4 x SATA III
RAID integrat	0, 1, 10
Tip port USB 3.1/3.2	Type-A
Porturi USB 3.0	4
Porturi USB 2.0	2
HDMI	1
VGA	1
DVI	1
DisplayPort	Nu

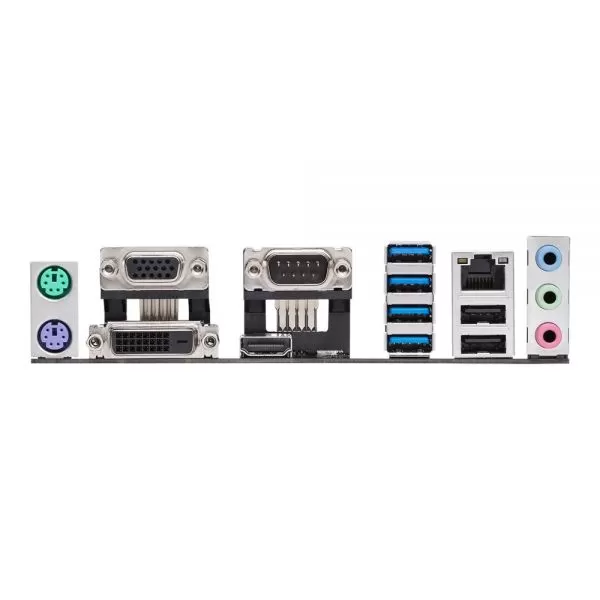

Porturi externe	PS/2 keyboard, PS/2 mouse, RJ-45, Audio
Sloturi PCI-E x16	1
Sloturi M.2	1
Format	Micro ATX
Dimensiuni (L x l, cm)	24.4 x 23.
Greutate Colet	1
