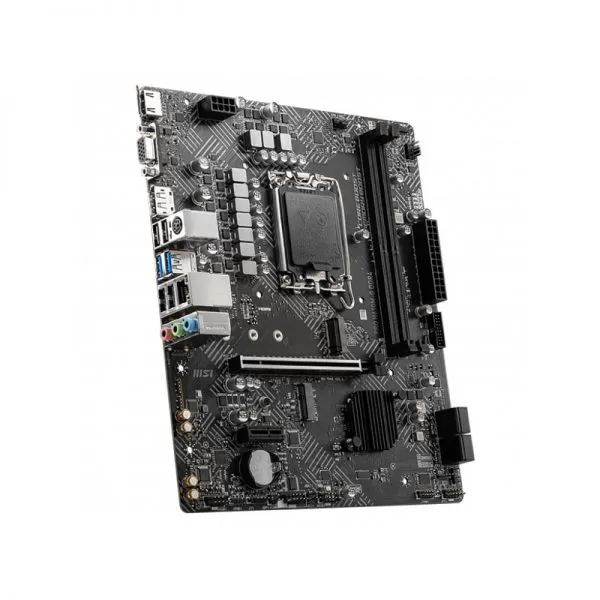

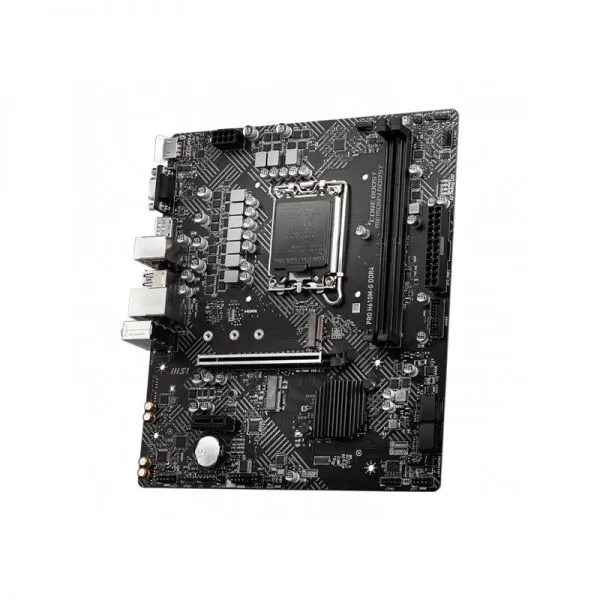

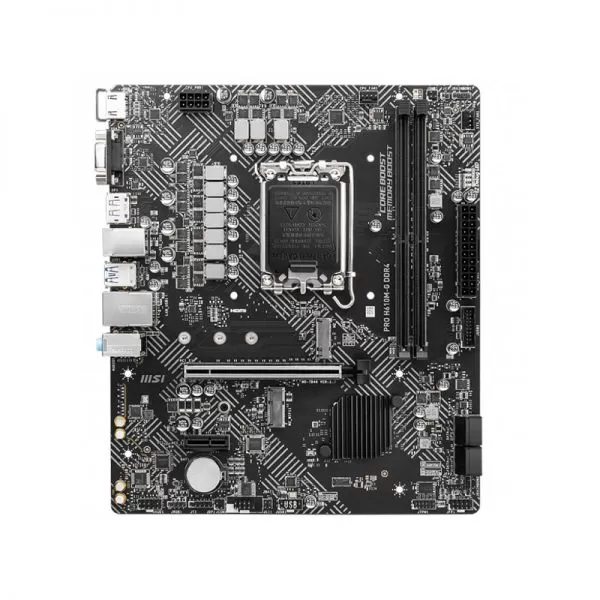

Placa de baza MSI PRO H610M-G DDR4, socket 1700
Produse asemanatoare
Placa de baza MSI PRO H610M-G DDR4 LGA 1700 911-7D46-003 / 4719072925024 SPECIFICATIONS Model Name PRO H610M-G DDR4 CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® H610 Chipset Graphics Interface 1x PCIe 4.0 x16 slot Display Interface Support 4K@60Hz as specified in HDMI 2.1 DisplayPort 1.4, VGA – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-3200MHz (MAX) Expansion Slots 1x PCIe 3.0 x1 slot 1x M.2 slot with E-key for PCIe WiFi module only Storage 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gb/s ports USB ports 4x USB 3.2 Gen 1 5Gbps(4 Type-A) 6x USB 2.0 LAN Intel® I219-V 1G LAN Audio 8-Channel(7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/PRO-H610M-G- DDR4/Specification
| Caracteristici Placa de baza MSI PRO H610M-G DDR4, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | H610 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memorie maxima suportata (GB) | 64 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC892/897 |
| LAN integrat | 10/100/1000 Mbps |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 2 |
| Tip port USB 3.1/3.2 | Type-A |
| HDMI | 1 |
| VGA | 1 |
| DVI | Nu |
| DisplayPort | DP |

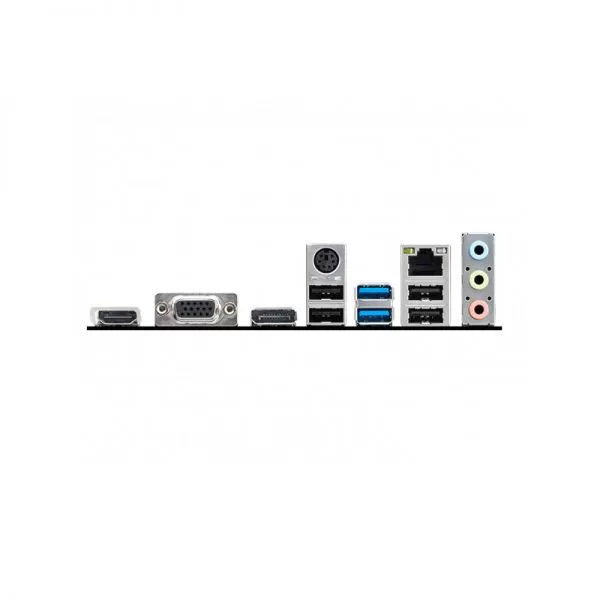

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 1 (x16) |
| Sloturi M.2 | 1 |
| Wireless | Nu |
| Format | Micro ATX |
| Greutate Colet | 2 |
| Placa de baza MSI PRO H610M-G DDR4, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | H610 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memorie maxima suportata (GB) | 64 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC892/897 |
| LAN integrat | 10/100/1000 Mbps |
| Interfata Serial ATA | 4 x SATA III |
| Porturi USB 3.2 | 2 |
| Tip port USB 3.1/3.2 | Type-A |
| HDMI | 1 |
| VGA | 1 |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 1 (x16) |
| Sloturi M.2 | 1 |
| Wireless | Nu |
| Format | Micro ATX |
| Greutate Colet | 2 |
